Electric heat high pressure big buck Auto-PLC press machine
underware bonding press
1. Instructions:
CZAJ-1040R is used to bonding press underware non-sewing seam
underware bonding press.
It has high pressure and temperature setting for different fabric
requirement
2. Automatic under-ware non-sew seal bonding press
| Model | CZAJ-1040R |
| Control | Automatic 24 steps LED PLC / color touch-screen PLC 7" |
| Total pressure | 2600kg max up |
| Buck size | 1000x400mm flat and bigger |
| Compress air | 0.4-0.6 M Pa (25L/min) 8mm inlet |
| Electric power | 380V/3ph/50HZ, 6.1KW biger |
| Vacuums | 0.75kw build-in vacuum unit or connector 2" to main vacuum pipe |
| heatings | electric heating element |
| Dimension: | 1200x1200x1350mm |
| Net weightkg | 470kg |
3. Machine's advantage points
3.1 / scissor close and lever amplification pressure

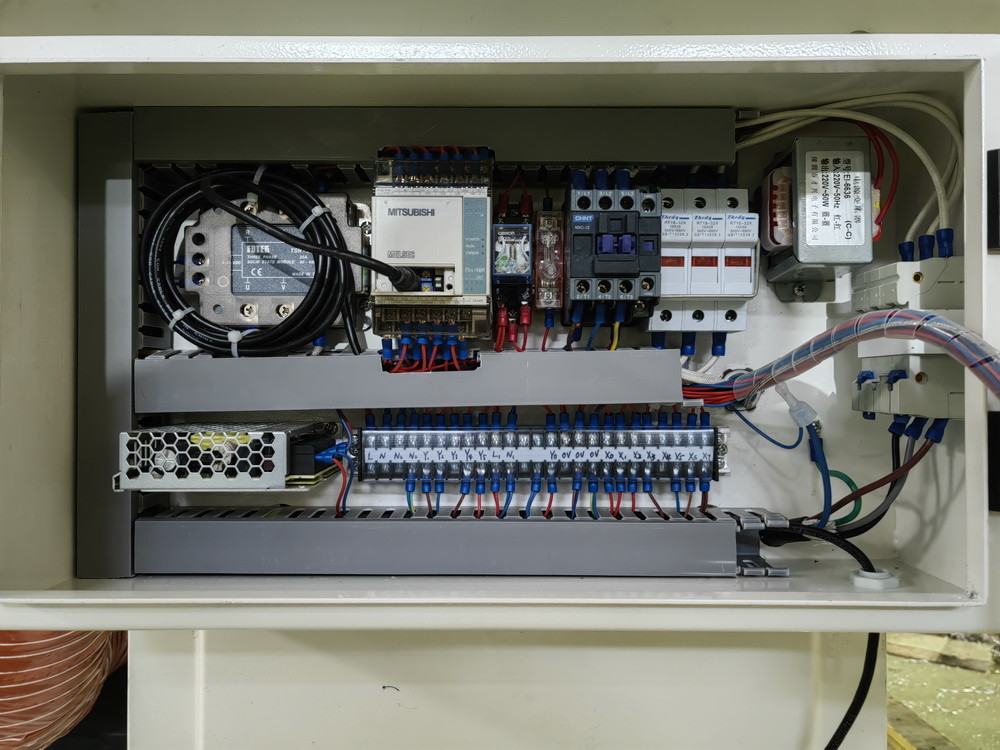

3.2 / LED controller or Touch-screen 7" PLC controller with more
function
3 level safety protection design for more safe
output and input signal, for easy check fault
3.3 / Advanced 180mm length shock absorber (long life use design)
or air shock abosorber
3.4 / top buck with electrics heating elements
3.5 / top buck with telfons cover
3.6 / bottom buck with vacuums (supper strong)
3.7 / build-in vacuums unit saves energeys
3.8 / Vacuum: step-run, release-stop (save energy)
3.9 / emergency stop 3 level safeteys designs
4. Machine's application
4.1 / underware bonding pressi
4.2 / non-sewing seam pressi
4.3 / wrinkle free seam pressi
4.4 / sportward bonding pressi
5. Question & Answer
1.Q | How could I get more information |
A | Please contact with our E-mail or local agent. |
2.Q | Do you have another type of machine? |
A | Sure. We have 3 different levels of machine for your reference |
3.Q | Do you have any customer factory to see? |
A | Sure. Please contact with us to find close one for you. |
4.Q | Do you have machine video? |
A | Sure. Please contact with us. |
5.Q | Are you factory? |
A | Sure. We started to manufacture on 1995. |
6.Q | Our garment is export to different countries. Do you have suitable
buck? |
A | Sure. We have different types of buck series for your reference.. |
7.Q | Our factory production is not much, could I have some suggestion? |
A | Sure. We have double buck machine for small production factory.. |
8.Q | Do you have English manual and installation instruction? |
A | Sure s. We have all.. |
9.Q | Could you supply OEM product? |
A | Sure. We are supplying OEM machine for Italy, English, American
customer.. |
10.Q | Could you supply with demo machine? |
| We could supply with demo machine with some cost.. |
5. Machine's picture
