Right Back Automatic Dress Pressing Machine PU Jacket Pressing
Machine
Jacket Pressing Machine is used for the classic suit, the trousers,
trousers' legs, collar and sleeve which are made of wool, synthetic
fabric, it is easy to operate and maintain and can be adapted for
medium and small-sized garment manufacturers
Specification:
1. High efficiency universal press machine, manual or automatic
control
2.The new designed could be guarantee high performances and big
production costs saving
3.The wide range of version and available shapes, according to the
need, makes this series extremely versatile
4.Top press unit made of aluminum casting which is light to handle,
non-oiling ball bearing
5.Well insulated press design allow fast steam escape from the
press head
II. Feature
- Sclssors-type close & press.
- Metal buck is suitable for garment (Customizable)

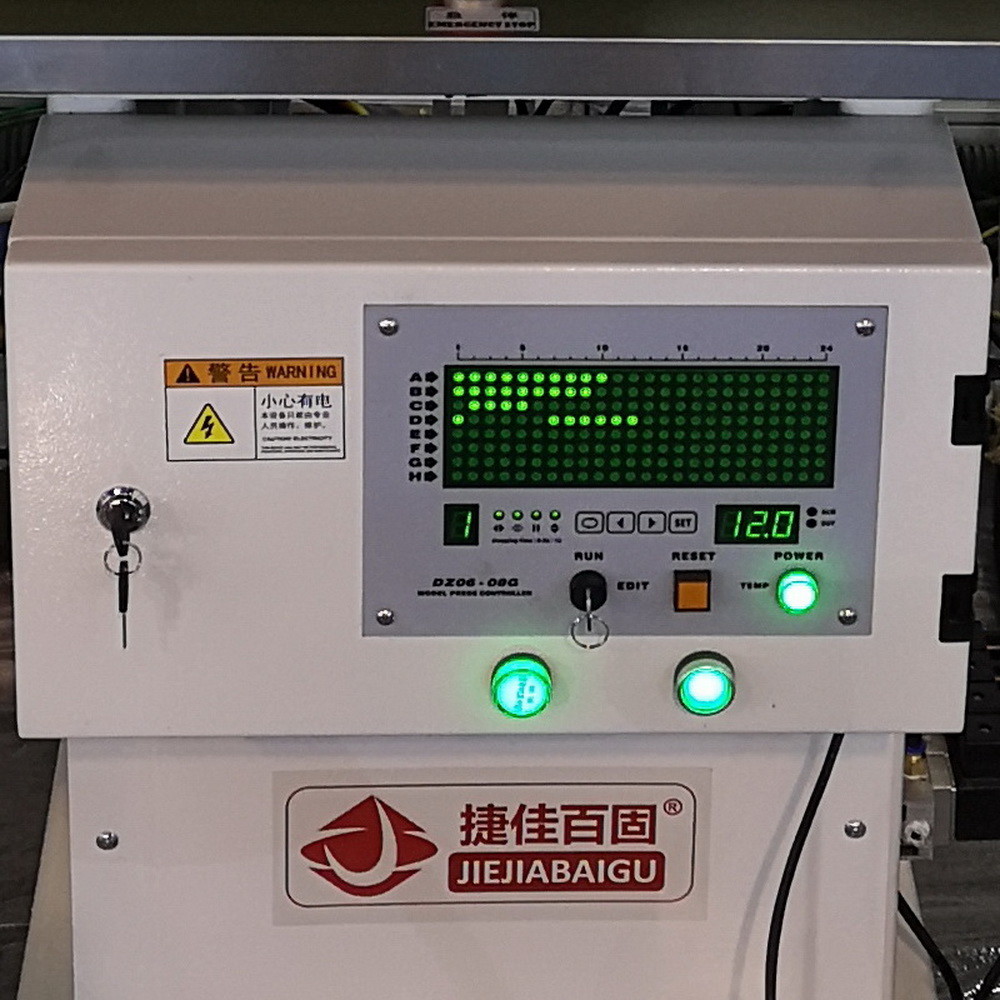

- Automatic LED Controller (8 programs)
- Automatic LED Controller (8 programs)
- (Set: close, press steam, Vacuum)
- Pneumatic Pressure adjustment for every type of fabric
- Sensitive Ironing with Pat-pat Ironing function.
- Safety frame for operate safe optional
- Computer (PLG) Control
- Laser Pointer
- Period of step: 0.5/1.0/1.5/2.0/2.5 second
- 3 level safety protection device.
- Output signal on electric board (easy to check faulty)
- 180 mm length shock absorber (long life)
- Stainless still board, Steam heating system.
- Top buck steam spray (Italy-made Valve)
- Bottom buck has vacuum
- Famous Pneumatic parts.
| Model | CPJ suit jacket press machine | CYAJ suit jacket press machine |
| Driving mode | Manual | Automatic cylinder |
| Heating model of upper and lower mould | Steam | Steam |
| Driving mode of the mould | Upper mould hand operated
Lower mould foot operated |
Upper mould and lower mould automatic move |
| Steam working pressure (Mpa ) | 0.4Mpa to 0.6Mpa | 0.4Mpa to 0.6Mpa |
| Steam consumption | 18kg/h | 18kg/hour |
| Dimension | 1200mm*1200mm*1350mm | 1200mm*1200mm*1650mm |
II. Automatic suit jacket press machine (Lady left back press)
| Model | suit jacket press machine |
| Control | Automatic LED PLC (8 programs) |
| Optional: touch-screen PLC (16 programs) |
| Buck name | left back body |
| Buck material | Aluminiu aa |
| Total pressure | 100 ...750kg |
| Heat method | Steam chamber and pipe system |
| Steam spray | Top buck, bottom buck, or both heat |
| Vacuum | Bottom buck, top buck, or both vacuum |
| Standard: 2” vacuum pipe system |
| Optional 1: 1.5kw 220V build-in pump |
| Optional 2: 0.75kw 380V build-in pump |
| Steam | 0.4-0.6MPa (18kg/h) / (15kg/h) |
| Standard: 1/2” pipe |
| Optional: build-in steam boiler 12kw 380V |
| Spray by Japan design steam vavle |
| Compress air | 0.4-0.6MPa (20L/min) |
| Standard: 8mm pipe system |
| Optional: build-in air compressor 1.5kw 220V |
| Electric power | 220V/1ph/50hz, 0.1kw
220V/1ph/50hz, 1.6kw (with build-in pump)
380V/1PH/50hz, 0,85kw (with build-in pump) |
| Drained water | 1/2” pipe |
| Dimension | 1200x1200x1650mm |
| Safety | 3 levels |
| Net weight | 470kg up |
| Package | Wooden case |
IV. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CYAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CYAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CYAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CYAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CYAJ-126 | Double lapel press | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder press | 1000x1000x2150 |
| 7 | CYGJ-547 | Collar master press | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front press | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking press | 900x1200x1300
|
5 series of main product:
- Fabric shrink / inspect / fuse machinery all solution
- Suits pressing machinery series
- trousers machinery series
- Shirt machinery series
- Jeans denim machinery series
- Knitting / sweater machinery series
=========================================
I
Auto press machine for suit jacket uniform interlining steam
ironing equipment with vacuum suction
Factory:
I. Factory
The company established a production base in Shanghai in 1998, with
more than 22 years of clothing ironing equipment design, research
and development, production experience
Customers are all in China, in Southeast Asia, Europe, America,
Africa and other countries
There are 5 main departments, such as technology development
department, product design department, product sales department,
accounting department and production management department. The
main products include: 1 - jacket ironing machine 2 - shirt ironing
machine 3 - pant ironing machine.
V. Q&A
| 1.Q | How could I get more information |
| A | Please contact with our E-mail or local agent. |
| 2.Q | Do you have another type of machine? |
| A | Yes. We have 3 different levels of machine for your reference |
| 3.Q | Do you have any customer factory to see? |
| A | Yes. Please contact with us to find close one for you. |
| 4.Q | Do you have machine video? |
| A | Yes. Please contact with us. |
| 5.Q | Are you factory? |
| A | Yes. We started to manufacture on 1995 |
| 6.Q | Our garment is export to different countries. Do you have suitable
buck? |
| A | Yes. We have different types of buck series for your reference. |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Yes. We have double buck machine for small production factory. |
| 8.Q | Do you have English manual and installation instruction? |
| A | Yes. We have all. |
| 9.Q | Could you supply OEM product? |
| A | Yes. We are supplying OEM machine for Italy, English, American
customer. |
| 10.Q | Could you supply with demo machine? |
| A | We could supply with demo machine with some cost.
|
