touch-screen PLC ISO9001 Commercial Pressing Machine Scissors Close
different kind of fabric suit collar press machine
1. Instructions:
1, With simple and reliable design, the pressure of the machine can
be adjusted sleeplessly, and which is equipped with a programmable
computer system to set the pressing time, suction time, etc. To
meet the requirement of different kinds of fabrics.
2, The buck shape is with the smooth and durable surface, the shape
is specially designed for suit lapel.
CYAJ-130 is used to press jacket blazer suit collar back in suit
final press line.
They are designed for different kind of fabric with many different
functions
2. Machine perameter:
| Model | CYAJ-130 collar backarea |
| Control | Automatic touch-screen PLC controller |
| Total pressure | 750kg maxim |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” inlet |
| Compress air | 0.4-0.6MPa (15L/min) 8mm inlet |
| Electric power | 220V/1ph/50HZ supply |
| Vacuum | 1.5kw extra vacuum pump 2” pipe |
| Drained water | 1/2” |
| Buck gap | 0-50mm set in optional |
| Location pilot | Laser light *2 |
| Dimension | 900x1200x1650mm |
| Net weight | 420kg |
3. Machine's advantage
3.1 Scissors-type close & vertical press
(All buck surface press at same time)
3.2 Metal buck is suitable for garment
(customizable)
3.3 Automatic LED controller (8 programs)
(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)
3.4 (3) level safety protection device
3.5 Input & output signal
(easy to check faulty)
3,6 180mm length shock absorber (long life)
Optional air shock absorber system
3.7 Stainless steel board
Optional painted metal board
3.8 Steam heating system (top + bottom)
3.9 Top buck steam spray
(steam chamber supply much volume)
3.10 Bottom buck has vacuum
3.11 Famous pneumatic parts
3.12 suitable for:
3.13 ironing part:
3.14 optional buck distance adjustment
3.15 ) Steam spray: top + bottom
3.16 ) Vacuum: bottom + top
3.17 ) top buck with extra heating pipe
4. Machine's application
4.1 ) High class wool fabric jacket blazer front suit final press
4.2 ) Dark color light fabric jacket blazer font suit final press
less shining
4.3 ) classical jacket blazer collar back suit final press
4.4 ) formal jacket blazer collar back part suit final press
5. Full final suit dress press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CXAJ-107 | Left front p-ress | 1200x1200x1650 |
| 2 | CXAJ-108 | Right front p-ress | 1200x1200x1650 |
| 3 | CXAJ-122 | Left back p-ress | 1200x1200x1650 |
| 4 | CXAJ-123 | Right back p-ress | 1200x1200x1650 |
| 5 | CXAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CXEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CXGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300
|
6. Company profile:
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- Knitting machinery
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
8. Q&A
8.1 —How could I get more information?
please contact with E-mail and telephone
8.2 —Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
8.3 —Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
8.4 —Do you have machine video?
Yes. please contact with us.
8.5 —Are you factory?
Yes. We have manufactured for over 20 years.
8.6 —Could I customize machine or buck
Yes. We could make machine according to your requirement.

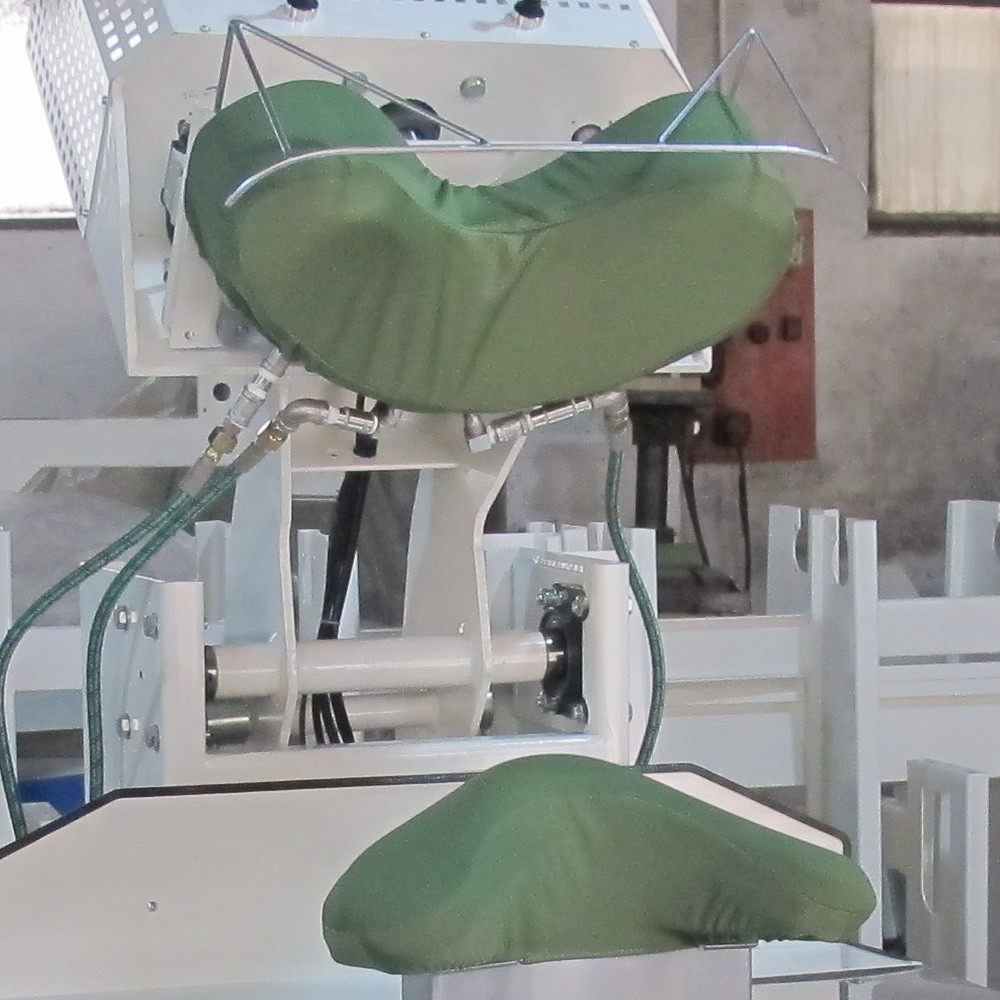

9. Machine's picture
