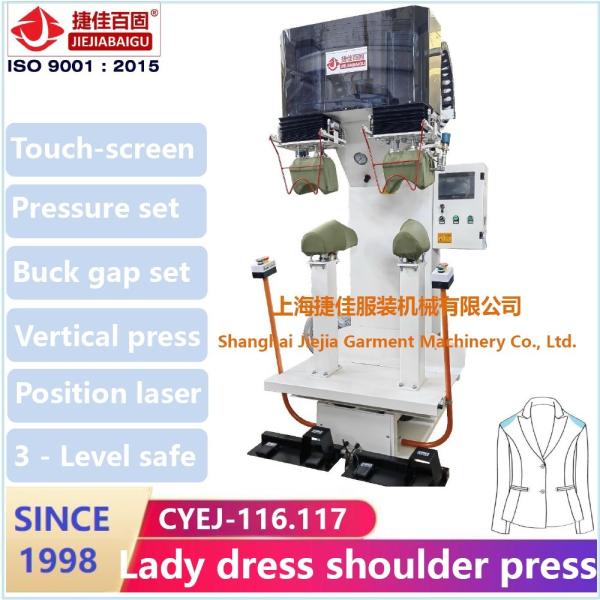

Lady Blazer double shoulder Jacket Pressing Machines Vertical steam
ironing equipment
1. Instructions:
CXEJ-116.117 is used to press jacket blazer suit double shoulder in
suit final press line.
They are designed for different kind of fabric with many different
functions
2. Machine perameter:
| Model | CYEJ-116.117 lady |
| Control | Automatic touch-screen PLC controller |
| Total pressure | 200kg max |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” in |
| Compress air | 0.4-0.6MPa (15L/min) 8mm in |
| Electric power | 220V/1ph/50HZ-60 |
| Vacuum | 1.5kw extra vacuum pump 2” x2 in |
| Drained water | 1/2”x2 in |
| Buck gap | 0-50mm set in PLC set |
| Location pilot | Laser light *2 |
| Dimension | 1000x1000x2250mm size |
| Net weight | 300kg net |
3. Machine's advantage
3.1 ) Vertically press: full surface move down at same time to make
pressure equallys
3.2 ) Touch-screen PLC with more functions
3 level safety protection designs
buck gap is able to set between 0-50mm in PLCs
3.3 ) steam heating system and steam sprays
3.4 ) with location pilot laser lights
3.5 ) top buck and bottom buck with steam heating chambers
3.6 ) Top steam spray by Japan design valve (steam: dry & huge
valume)s
3.7 ) Steam spray: top + bottoms
3.8 ) Vacuum: bottom + tops
3.9 ) top buck with extra heating pipes
extra build-in vacuum unit
4. Machine's application
4.1 ) High class wool jacket blazer front suit final presss
4.2 ) Dark color light fabric jacket blazer font suit final presss
4.3 ) classical jacket blazer font suit final presss
4.4 ) formal jacket blazer font suit final presss
5. Company profile:
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed 5 series of main products:
- Fabric shrink / inspect / fuse machineryc
- Suits pressing machineryc
- Pant machineryc
- Shirt machineryc
- Jeans machineryc
- Knitting machineryc
Any customer could find his satisfied machinery and acceptable
price for economical class or high classc.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so onc.
6. Q&A
8.1 —How could I get more informationc?
please contact with E-mail and telephone
8.2 —Do you have another type of machine c
Yes. we have 3 different levels of machine for your reference
8.3 —Do you have any customer factory to seec?
Yes. please contect with us to find close one for you.
8.4 —Do you have machine videoc?
Yes. please contact with us.
8.5 —Are you factoryc?
Yes. We have manufactured for over 20 years.
8.6 —Could I customize machine or buckc
Yes. We could make machine according to your requirement.
7. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CXAJ-107 | Left front pressb | 1200x1200x1650 |
| 2 | CXAJ-108 | Right front pressb | 1200x1200x1650 |
| 3 | CXAJ-122 | Left back pressb | 1200x1200x1650 |
| 4 | CXAJ-123 | Right back pressb | 1200x1200x1650 |
| 5 | CXAJ-126 | Double lapelb | 900x1200x1650 |
| 6 | CXEJ-116.117 | Double shoulderb | 1000x1000x2150 |
| 7 | CXGJ-547 | Collar masterb | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve frontb | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbowb | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-holeb | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blockingb | 900x1200x1300 |
