CYGJ
Jacket blazer suit press machine equipment vertical press collar
master Shanghai Jiejiabaigu
This steam press is used for shaped-fixed and ironing processing
for the classic suit, the trousers' legs and rousers which made of
woool, synthetic fibric, it is easy in maintance and adaptable to
medium and small-size garment manufactures.
Both the top mold and bottom mold is vacuum and heated by steam.
The machine can be operated manually or automatic that the air
operated automatic steam press.
I. Feature
Scissors-type close & vertical press
(All buck surface press at same time)
3 TOP press bucks
Metal buck is suitable for garment
(customizable)
Automatic Touch-screen PLC
-steam spray optional: top, bottom or both
-vacuum optional: top, bottom or both
3 level safety protection device
180mm length shock absorber (long life)
Steam heating system
Top buck steam spray
Bottom buck has vacuum
Famous pneumatic parts
II. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time

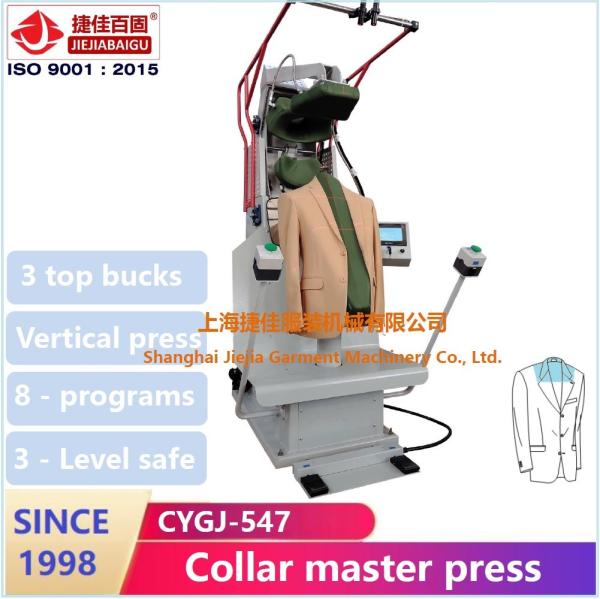

III. Automatic suit jacket press machine (collar)
| Model | CYGJ-547 |
| Control | Automatic touch-screen PLC |
| Total pressure | 750kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 1000x1000x2150mm |
| Net weight | 380kg |
IV. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CYAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CYAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CYAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CYAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CYAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CYGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- Knitting machinery
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam
ironing equipment with vacuum suction
