Touch screen PLC Jacket blazer double shoulder press machine suit
findal press
1. Instruction of CXEJ-116.117:
CXEJ-116.117 is used to press jacket blazer suit double shoulder in
suit final press line.
They are designed for different kind of fabric with many different
functions
2. Machine perameter:
| Model | CXEJ-116.117 Double shoulder |
| Control | Automatic touch-screen PLC |
| Total pressure | 250kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 1000x1000x2150mm |
| Net weight | 300kg |
3. Machine's advantage
3.1 <Vertically direct press: full surface move down at same
time to make pressure equally
3.2 < Touch-screen PLC with some advanced functions
<3 level safety protection design
<buck gap is able to set between 0-50mm in PLC
3.3 <)Advanced hydrauic type180mm length shock absorber (long
life use)
3.4 <with location pilot laser light for 2 bottom bucks
3.5 <top buck and bottom buck with steam heating chamber &
heating pipe
3.6 <Top steam spray by Italy made valve
3.7 <Steam spray: top + bottom
3.8 <Vacuum: bottom
3.9 <top buck with extra heating pipe
4. Machine's application
4.1 <)High class wool jacket blazer double shoulder suit final
press
4.2 <Dark color light fabric jacket blazer double shoulder suit
final press
4.3 <classical jacket blazer double shoulder suit final press
4.4 <formal jacket blazer double shoulder suit final press

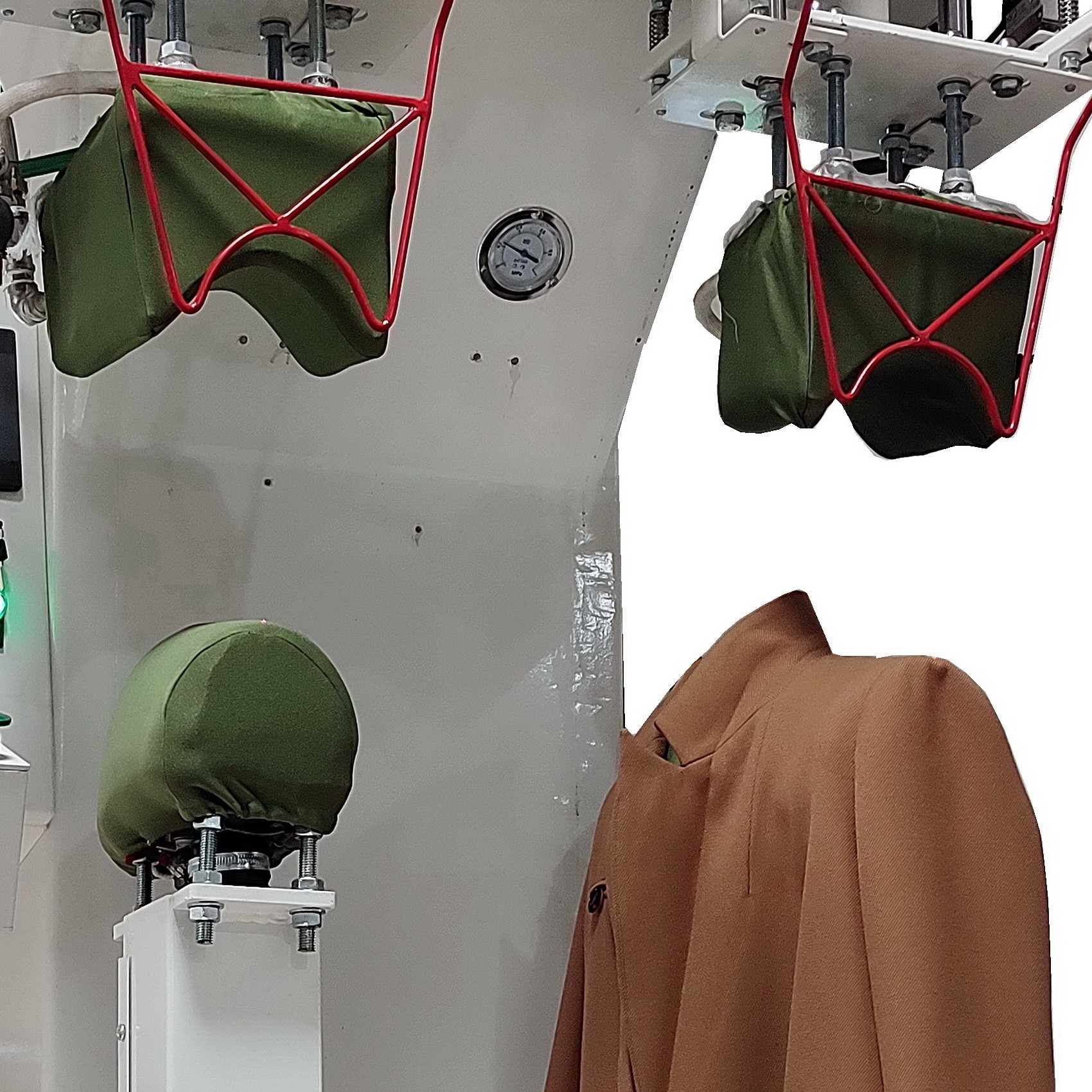

5. Machine's picture
6. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CXAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CXAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CXAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CXAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CXAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CXEJ-116.117 | Double shoulder(v) | 1000x1000x2150 |
| 7 | CXGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front iron | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow iron | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole iron | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking iron | 900x1200x1300 |
7. Company profile:
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant ironing machinery
- Shirt ironing machinery
- Jeans process machinery
- Knitting ironing machinery
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
8. Q&A
8.1 <How could I get more information?
please contact with E-mail and telephone
8.2 <Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
8.3 <Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
8.4 <Do you have machine video?
Yes. please contact with us.
