    0.75KW Automatic Cloth Press Machine 220V Double Shoulder Seam

    Ask Lasest Price
    Brand Name : JIEJIABAIGU
    Model Number : CZBJ
    Certification : ISO9001:2015
    Price : price is negotiable
    Supply Ability : 40 units per month
    Delivery Time : 7-15 works day
    • Product Details
    • Company Profile

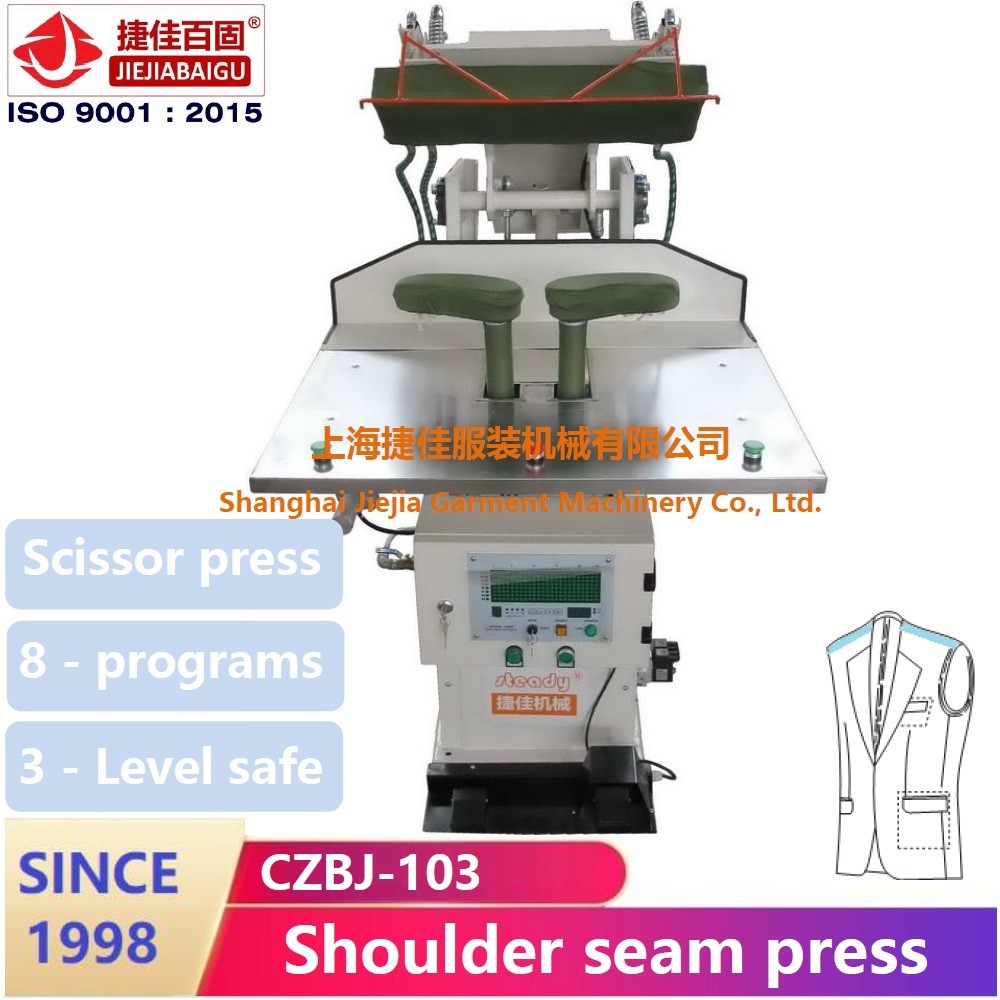

    0.75KW Automatic Cloth Press Machine 220V Double Shoulder Seam

    CZBJ Jacket Blazer Suit Sewing Line Auto-PLC Press Machine Double Shoulder Seam Shanghai Jiejiabaigu


    I. Introduction

    1. steam pressing machine,hotel equipment
    2. with reasonable structure design
    3. Strong wind suction


    II. Automatic suit jacket press machine (shoulder seam)

    ModelCZBJ-103
    ControlAutomatic LED PLC / touch-screen PLC
    Total pressure200kg
    Steam0.4-0.6MPa (18kg/h) 1/2”
    Compress air0.4-0.6MPa (15L/min) 8mm
    Electric power220V/1ph/50HZ
    Vacuum0.75kw extra vacuum pump 2”
    Drained water1/2”
    Dimension900x1200x1650mm
    Net weight320kg

    0.75KW Automatic Cloth Press Machine 220V Double Shoulder Seam


    III. Feature

    Scissors-type close & press

    Metal buck is suitable for garment

    (customizable)

    Automatic LED PLC / Touch-screen PLC

    3 level safety protection device

    180mm length shock absorber (long life)

    Steam heating system

    Top buck steam spray

    Italy steam valve

    (steam chamber supply much volume)

    Bottom buck has vacuum

    Famous pneumatic parts


    0.75KW Automatic Cloth Press Machine 220V Double Shoulder Seam

    0.75KW Automatic Cloth Press Machine 220V Double Shoulder Seam

    0.75KW Automatic Cloth Press Machine 220V Double Shoulder Seam


    IV. Full inline suit press machine


    NO.ModelDescription of machineDimension: L x W x H mm
    1CZBJ-120-21sleeve front seam900x1200x1300
    2CZBJ-120-31sleeve elbow seam900x1200x1300
    3CYAJ-112-31Left front dart press1200x1200x1650
    4CYAJ-113-31Right front dart press1200x1200x1650
    5CYAJ-112Left interline1200x1200x1650
    6CYAJ-113Right interliine1200x1200x1650
    7CYAJ-104-41Sleeve stetch900x1200x1650
    8CYAJ-120Back & side seams1200x1200x1650
    9CZBJ-103shoulder seam900x1200x1300
    10CYAJ-368Front and edge1200x1200x1650
    11CYAJ-369Front and edge1200x1200x1650

    0.75KW Automatic Cloth Press Machine 220V Double Shoulder Seam

    Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:


    1. Fabric shrink / inspect / fuse machinery
    2. Suits pressing machinery
    3. Pant machinery
    4. Shirt machinery
    5. Jeans machinery
    6. Knitting machinery

    Any customer could find his satisfied machinery and acceptable price for economical class or high class.


    Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.


    V. Q&A

    1. Do you have another type of machine ?
    Yes. we have 3 different levels of machine for your reference

    2. Do you have any customer factory to see?
    Yes. please contect with us to find close one for you.

    3. Do you have machine video?

    Yes. please contact with us.

    4. Are you factory?

    Yes. We have manufactured for over 20 years.


    =========================================

    Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
