    Wrinkle free Shirt body & sleeve blowing Machine 3-D dummy

    Ask Lasest Price
    Brand Name : JIEJIABAIGU
    Model Number : CS-250
    Certification : ISO9001:2015
    Price : price is negotiable
    Delivery Time : 30-45 works day
    • Product Details
    • Company Profile

    Wrinkle free Shirt body & sleeve blowing Machine 3-D dummy


    Wrinke free Shirt body & sleeve blowing machine 3-D dummy


    1. Instructions of CS-250
    It is used to ironing sleeve and body in shirt final press.
    It has temperature adjustment according to different shirt requirement

    It has strong air blowing to expend shirt body and sleeve.

    1, Available to press any special parts of cloth.
    2, With strong hot air blowing system.
    3, With strong cold air blowing system.
    4, Using high-quality pneumatic components and with reasonable designed steam circuit. Controlled by compressed air.
    5, Steam circuit is very simple and efficient. Temperature rises fast and with low heat ullage...

    2. Automatic CYHJ shirt final press

    ModelCS-250 shirt body & sleeve blowing machine / 3-D dummy
    ControlAutomatic touch-screen PLC 7"
    Steamyes
    how air blowingyes
    Compress air0.4-0.6MPa (80L/min) 8mm
    Electric power380V/3ph/50HZ, 5KW
    cold air blowyes
    Heatingelectric & steam
    Dimension1200x820x2000mm
    Net weight470kg



    3. Machine's advantage points
    3.1 / one step to iron body, sleeve, front placket & pocket
    3.2 / Touch-screen PLC controller with more using ways
    3 level safety protection design for more safety purpose
    output and input signal, for easy check fault in PLC
    3.3 / steam spray from inside
    3.4 / strong hot air blows from inside
    3.5 / strong cold air blows from inside
    3.6 / body size is automatic ajusted
    3.7 / non-press-crease on sleeve
    3.8 / all function time is adjustable on PLC
    3.9 /emergency stop
    3.10 / stainless steel bucks

    4. Machine's application
    4.1 /shirt body side seam and sleeve seam fuse and press
    4.2 /shirt arm-hole seam fuse and press
    4.3 /shirt shoulder seam fuse and press
    4.4 /shirt back seam fuse and press

    4.5 /shirt front press

    4.6 /shirt back press

    4.7 /shirt sleeve press

    4.8 /shirt collar & cuff press

    4.9 /shirt bottom seam press

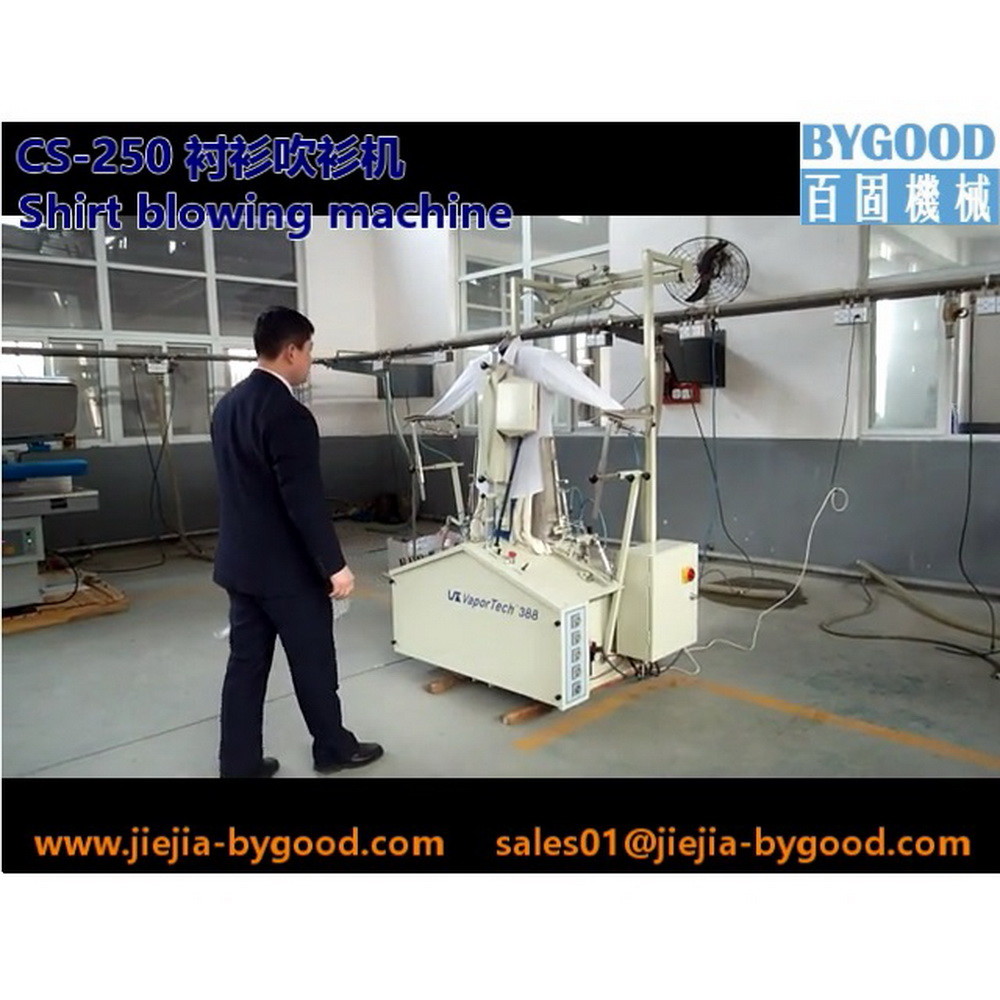

    5. Machine picture:

    Wrinkle free Shirt body & sleeve blowing Machine 3-D dummy

    Wrinkle free Shirt body & sleeve blowing Machine 3-D dummy

    Wrinkle free Shirt body & sleeve blowing Machine 3-D dummy

    Wrinkle free Shirt body & sleeve blowing Machine 3-D dummy


    6. Machine list of Shirt final press

    NO.ModelDescription of machine
    1CS-X110Body side seam & sleeve seam fuse press
    2CS-B116Shoulder and back seam fuse press
    3CS-L220Collar & cuff press (THIS MACHINE)
    4CZAJ-X110Body side seam & sleeve seam fuse press
    5CZAJ-B116Shoulder and back seam fuse press
    6CZAJ-L220Collar & cuff press
    7CZAJ-M112Front placket press
    8CYHJ-S108Rotary right front press
    9CYHJ-S107Rotary left front press
    10CYHJ-X110LRotary side seam press
    11CYHJ-S132Rotary back press
    12CYHJ-X113Rotary sleeve press
    13CZAJ-S118Body bottom seam fuse press
    14CS-230Thread suction machine
    15CS-250Shirt blowing machine
    16CS-L210Cold and hot collar press machine
    17CS-240Shirt folding table.

    7.Question & Answer


    1.QHow could I get more information
    APlease contact by our Email or local agent.
    2.QDo you have another type of machine?
    ASure. We have 3 different types of machine for your reference
    3.QDo you have any customer factory to see?
    ASure. Please contact with us to find close one for you.
    4.QDo you have machine video?
    ASure. Please contact with us. And we could send it you.
    5.QAre you factory?
    ASure. We started to manufacture on 1995
    6.QOur garment is export to different countries. Do you have suitable mould?
    ASure. We have different types of mould series for your reference.
    7.QOur factory production is not much, could I have some suggestion?
    ASure. We have double buck machine for small production factory.
    8.QDo you have English manual and installation instruction?
    ASure s. We have all.
    9.QCould you supply O-E-M product?
    ASure. We are supplying O-E-M machine for Italy, English, American customer.
    10.QCould you supply with test machine?
    We could supply with test machine with some cost.
