shirt press machine rotary turn & vertical press for double sleeve

Ask Lasest Price
Brand Name :	JIEJIABAIGU
Model Number :	CS-X110
Certification :	ISO9001:2015
Price :	price is negotiable
Supply Ability :	40 units per month
Delivery Time :	7-15 works day

Add to Cart

Product Details
Company Profile

shirt press machine rotary turn & vertical press for double sleeve

Rotary 2 work position Shirt sleeve pressing machine touch screen PLC shirt final press

1. Instructions of CYHJ-X113
CYHJ-X113 is used to fuse and press sleeve in shirt final press.
It has temperature adjustment according to different shirt requirement

1, Available to press any special parts of cloth.
2, With strong vacuum moisture removing system.
3, Can press cloth dehydrated.
4, Using high-quality pneumatic components and with reasonable designed steam circuit. Controlled by compressed air.
5, Steam circuit is very simple and efficient. Temperature rises fast and with low heat ullage...

2. Automatic CS-X110 shirt final press

Model	CYHJ-X113 sleeve press
Control	Automatic touch-screen PLC 7"
Total pressure	1,200kg
Buck size	2 bars for dual sleeve
Compress air	0.4-0.6MPa (80L/min) 8mm
Electric power	380V/3ph/50HZ, 5KW
Vacuum	1.5kw build-in vacuum pump
Heating	electric
Dimension	1650x1820x1850mm
Net weight	1,200kg

3. Machine's advantage points
3.1 / Rotary bottom buck move
& Vertical press with equal pressure
3.2 / Touch-screen PLC controller with more using ways
3 level safety protection design for more safety purpose
output and input signal, for easy check fault in PLC
3.3 /Top buck with teflon cover
3.4 / top buck with electric heating 3 heating zones
3.5 / Digital temperature controller
3.6 /bottom buck with vacuum
3.7 /build-in vacuum unit
3.8 /Vacuum: step-run, release-stop
3.9 /emergency stop
3.10 / CNC processed bucks

4. Machine's application
4.1 /shirt body side seam and sleeve seam fuse and press
4.2 /shirt arm-hole seam fuse and press
4.3 /shirt shoulder seam fuse and press
4.4 /shirt back seam fuse and press
4.5 /shirt front press
4.6 /shirt back press
4.7 /shirt sleeve press
4.8 /shirt collar & cuff press
4.9 /shirt bottom seam press

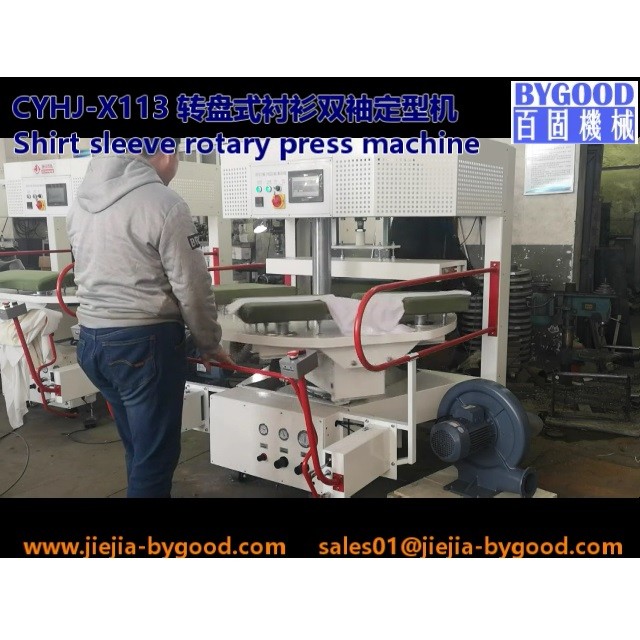

5. Machine's picture
shirt press machine rotary turn & vertical press for double sleeve

6. Machine list of Shirt final press

NO.	Model	Description of machine
1	CS-X110	Body side seam & sleeve seam fuse press
2	CS-B116	Shoulder and back seam fuse press
3	CS-L220	Collar & cuff press
4	CZAJ-X110	Body side seam & sleeve seam fuse press
5	CZAJ-B116	Shoulder and back seam fuse press
6	CZAJ-L220	Collar & cuff press
7	CZAJ-M112	Front placket press
8	CYHJ-S108	Rotary right front press
9	CYHJ-S107	Rotary left front press
10	CYHJ-X110L	Rotary side seam press
11	CYHJ-S132	Rotary back press
12	CYHJ-X113	Rotary sleeve press
13	CZAJ-S118	Bottom seam fuse press
14	CS-230	Thread suction machine
15	CS-205	Shirt blowing machine
16	CS-L210	Cold and hot collar press machine
17	CS-240	Shirt folding table.

7.Question & Answer

1.Q	How could I get more information
A	Please contact with our E-mail or local agent.
2.Q	Do you have another type of machine?
A	Sure. We have 3 different levels of machine for your reference
3.Q	Do you have any customer factory to see?
A	Sure. Please contact with us to find close one for you.
4.Q	Do you have machine video?
A	Sure. Please contact with us.
5.Q	Are you factory?
A	Sure. We started to manufacture on 1995
6.Q	Our garment is export to different countries. Do you have suitable buck?
A	Sure. We have different types of buck series for your reference.
7.Q	Our factory production is not much, could I have some suggestion?
A	Sure. We have double buck machine for small production factory.
8.Q	Do you have English manual and installation instruction?
A	Sure s. We have all.
9.Q	Could you supply OEM product?
A	Sure. We are supplying OEM machine for Italy, English, American customer.
10.Q	Could you supply with demo machine?
	We could supply with demo machine with some cost.
