Vertical Close Commercial suit Press 0.4-0.6MPa Italy made steam
valve different kind of fabric commercial laundry press
Factory
The company established a production base in Shanghai in 1998, with
more than 24 years of clothing ironing equipment design, research
and development, production experience
Customers are all in China, in Southeast Asia, Europe, America,
Africa and other countries
Our company has passed is090001-2015 quality system certification.
There are 5 main departments, such as technology development
department, product design department, product sales department,
accounting department and production management department. The
main products include: 1 - suit ironing machine 2 - shirt ironing
machine 3 - trousers ironing machine.

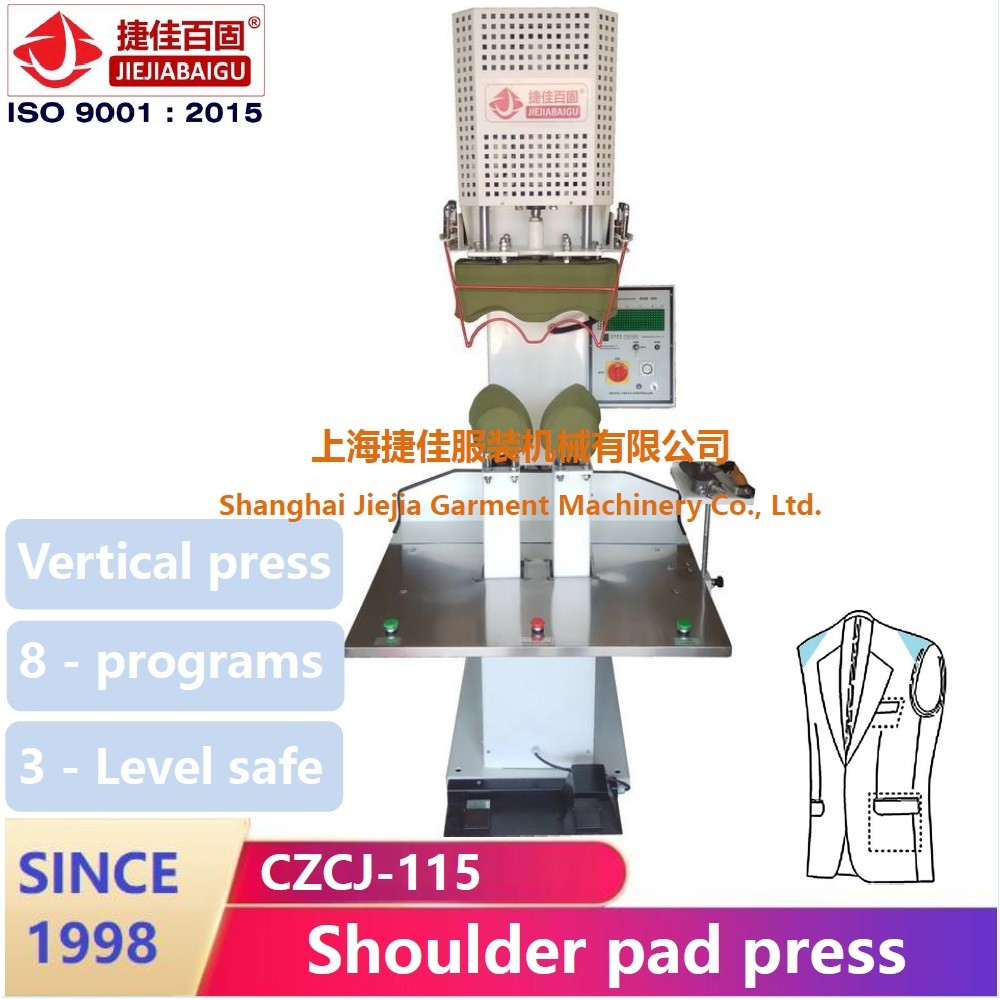

1. Instructions of CZCJ-115:
CZCJ-115 is used to press shoulder pad of jacket blazer suit.
They are designed for different kind of fabric with unersal buck.
2. Machine perameter:
| Model | CZCJ-115 (shoulder pad press) |
| Control | Automatic touch-screen PLC / LED PLC |
| Total pressure | max to 400kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” steam supply |
| Compress air | 0.4-0.6MPa (15L/min) 8mm air supply |
| Electric power | 220V/1ph/50HZ / 380V/3ph/50hz supply |
| Vacuum | 1.5kw / 0.75 build-in vacuum unit pipe supply |
| Drained water | 1/2” system supply |
| press type | dry press |
| Stem spray | Italy made valve x1 or x2 |
| Dimension | 900x900x1750mm |
| Net weight | 370kg |
3. Machine's advantage
3.1 ) Scissors press: simple movement and more stability
3.2 ) Manual control / LED PLD / Touch-screen PLC with more
function
3 level safety protection design
buck gap is able to set between 0-50mm in PLC
3.3 ) Advanced 180mm length shock absorber (long life use)
3.4 ) with different buck design and sizes
3.5 ) top buck and bottom buck with steam heating chamber
3.6 ) Top steam spray by Italy made valve (steam: dry & huge
valume)
3.7 ) Steam spray: bottom
3.8 ) Vacuum: bottom
3.9 ) top buck with extra heating pipe
4. Machine's application
4.1 ) High class wool jacket blazer front suit final press
4.2 ) Dark color light fabric jacket blazer font suit final press
4.3 ) classical jacket blazer font suit final press
4.4 ) formal jacket blazer font suit final press
5. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-137 | Seat seam | 900x1200x1300 |
| 2 | CZCJ-136 | Pocket | 900x900x1650 |
| 3 | CZAJ-666 | Legger stretch | 1200x1200x1350 |
| 4 | CZAJ-119 | High pressure side seam | 1200x1200x1350 |
| 5 | CZBJ-119 | Side seam | 1200x1200x1300 |
| 6 | CZBJ-102 | Topper | 900x1200x1300 |
| 7 | CZAJ-102 | High pressure topper | 900x1200x1350 |
| 8 | CZAJ-102R | Electric-heat high pressure topper | 900x1200x1350 |
| 9 | CZBJ-101 | Legger | 1200x1200x1300 |
| 10 | CZAJ-101 | High pressure legger | 1200x1200x1350 |
| 11 | CZAJ-101R | Electric-heat high pressure legger | 1200x1200x1350 |
| 12 | CYAJ-101 | Vertical press legger | 1200x1200x1650 |
| 13 | CYAJ-101S | Vertical press double legger | 3000x1600x1650 |
| 14 | VTH-288A | Pant blowing machine / dummy | 500x1200x2000 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- Knitting machinery
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
6. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
7. Machine's picture
Auto press machine for suit jacket uniform interlining steam
ironing equipment with vacuum suction
