    Suit Jacket Pressing Machine Touch Screen PLC 0-50mm different kind of fabric

    Ask Lasest Price
    Brand Name : JIEJIABAIGU
    Model Number : CXAJ
    Certification : ISO9001:2015
    Price : price is negotiable
    Supply Ability : 20 units per month
    Delivery Time : 7-15 works day
    • Product Details
    • Company Profile

    Suit Jacket Pressing Machine Touch Screen PLC 0-50mm different kind of fabric

    Suit Jacket Pressing Machine Touch Screen PLC 0-50mm different kind of fabric


    1. Factory

    The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience

    Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries

    Our company has passed is090001-2015 quality system certification.

    There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers ironing machine.


    2. Machine perameter:

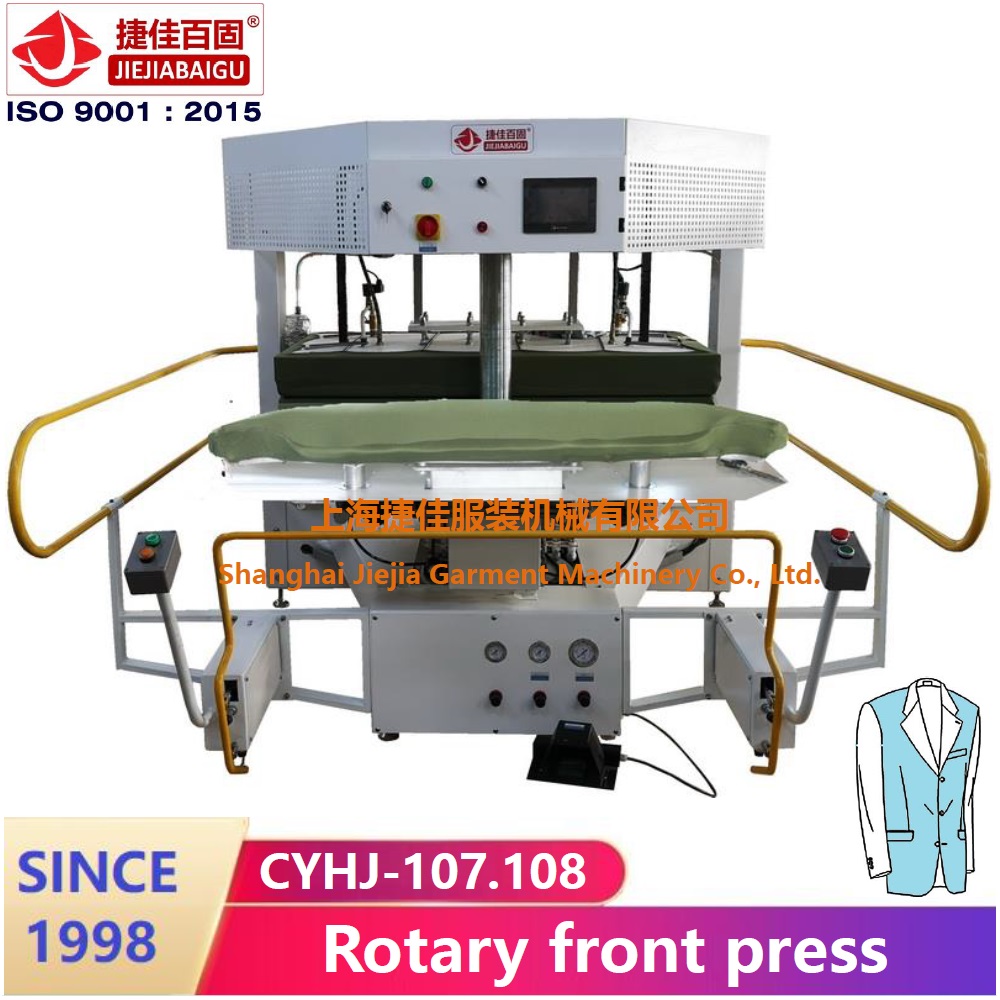

    CXAJ-107 (Left front press) & CXAJ-108 is used to press jacket blazer suit front in suit final press line.

    They are designed for different kind of fabric with many different functions


    ModelCXAJ-107 (left), CXAJ-18(right)
    ControlAutomatic touch-screen PLC
    Total pressure750kg
    Steam0.4-0.6MPa (18kg/h) 1/2” 150C
    Compress air0.4-0.6MPa (15L/min) 8mm INLET
    Electric power220V/1ph/50HZ 60HZ
    Vacuum1.5kw extra vacuum pump 2” inlet
    Drained water1/2” pipe
    Buck gap0-50mm set in PLC optional
    Location pilotLaser light *2
    Dimension1200x1200x1650mm
    Net weight520kg

    3. Machine's advantage

    3.1 ) 2 workiing position: one load/unload, one press
    increase efficience
    Vertically press: full surface move down at same time to make pressure equally

    3.2 ) Touch-screen PLC with more function

    3 level safety protection design
    buck gap is able to set between 0-50mm in PLC

    3.3 ) Advanced 180mm length shock absorber (long life use)

    3.4 ) with location pilot laser light

    3.5 ) top buck and bottom buck with steam heating chamber

    3.6 ) Top steam spray by Japan design valve (steam: dry & huge valume)

    3.7 ) Steam spray: top + bottom

    3.8 ) Vacuum: bottom + top

    3.9 ) top buck with extra heating pipe


    4. Machine's application

    4.1 ) High class wool jacket blazer front suit final press

    4.2 ) Dark color light fabric jacket blazer font suit final press

    4.3 ) classical jacket blazer font suit final press

    4.4 ) formal jacket blazer font suit final press


    5. Full final suit press machine


    NO.ModelDescription of machineDimension: L x W x H mm
    1CYHJ-107.108Left right front press1700x1700x1750
    2CYHJ-122.123Left ight back press1700x1700x1750
    3CXAJ-122Left back press1200x1200x1650
    4CXAJ-123Right back press1200x1200x1650
    5CYHJ-126Double lapel1700x1700x1750
    6CXEJ-116.117Double shoulder1000x1000x2150
    7CXGJ-547Collar master1100x1100x2150
    8CZBJ-104Sleeve front900x1200x1300
    9CZBJ-105Sleeve elbow900x1200x1300
    10CZBJ-114Sleeve arm-hole900x1200x1300
    11CABJ-114-14Sleeve blocking900x1200x1300

    7. Company profile:


    Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:


    1. Fabric shrink / inspect / fuse machinery
    2. Suits pressing machinery
    3. Pant machinery
    4. Shirt machinery
    5. Jeans machinery
    6. Knitting machinery

    Any customer could find his satisfied machinery and acceptable price for economical class or high class.


    Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.


    8. Q&A

    8.1 —How could I get more information?
    please contact with E-mail and telephone

    8.2 —Do you have another type of machine ?
    Yes. we have 3 different levels of machine for your reference

    8.3 —Do you have any customer factory to see?
    Yes. please contect with us to find close one for you.

    8.4 —Do you have machine video?

    Yes. please contact with us.

    8.5 —Are you factory?

    Yes. We have manufactured for over 20 years.

    8.6 —Could I customize machine or buck

    Yes. We could make machine according to your requirement.


    7. Machine's picture



    Suit Jacket Pressing Machine Touch Screen PLC 0-50mm different kind of fabricSuit Jacket Pressing Machine Touch Screen PLC 0-50mm different kind of fabric



    Suit Jacket Pressing Machine Touch Screen PLC 0-50mm different kind of fabric


    9. FACTORY
