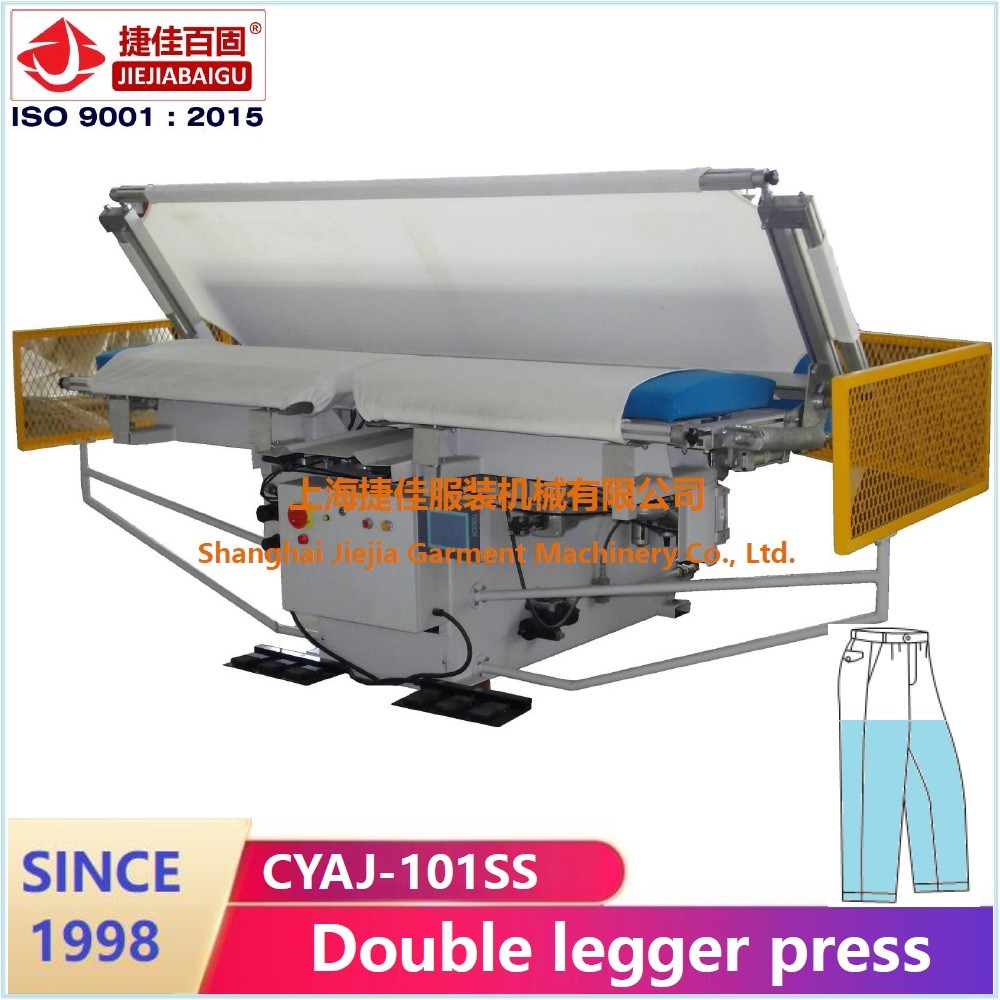

Touch-screen Auto-PLC double legger vertical press machine trousers
pant final press
1. Instruction:
CYAJ-101SS is able to press double pant legger in on time.
Re different fabric, it is able to set different pressing program.
Program could control suction, frame, steam, press automatically.
1. steam pressing machine,hotel equipment
2. with reasonable structure design
3. Strong wind suctionaaaaSpecification
Name: steam pressing machine
Ironing table, ironer, vacuum ironing table, laundry equipment,
laundry machines, dry cleaning shop.
2. Machine perameter:
| Model | CYAJ-101SS |
| Control | Automatic LED PLC / touch-screen PLC |
| Total pressure | 750kg |
| Steam | 0.4-0.6MPa (35kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (80L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 3kw extra vacuum pump 2”x2 |
| Frame | Top + bottom, Germany made fabric |
| Drained water | 1/2” |
| Dimension | 3000x1600x1650mm |
| Net weight | 950kg |
3. Machine advantage
3.1 —Vertical press: all surface touch at same time to guarantee
pressure equally
3.2 — Automatic LED PLC / Touch-screen PLC
3 level safety protection device
3.3 —with 180mm length shock absorber (long life)
3.4 —with stretch frame & Germany-made knitting fabric
(anti-shining)
3.5 —top buck and bottom buck with steam heating chamber
3.6 —Top steam spray by Japan design valve (dry & huge valume)
3.7 —Steam spray: top + bottom
3.8 —Vacuum: left bottom + right bottom + top
4. Machine application
4.1 —High class wool trousers double legger trousers pant final
press
4.2 —Dark color light fabric trousers double legger pant final
press
4.3 —classical trousers double legger pant final press
4.4 —formal trousers double legger pant final press
5. Machine picture

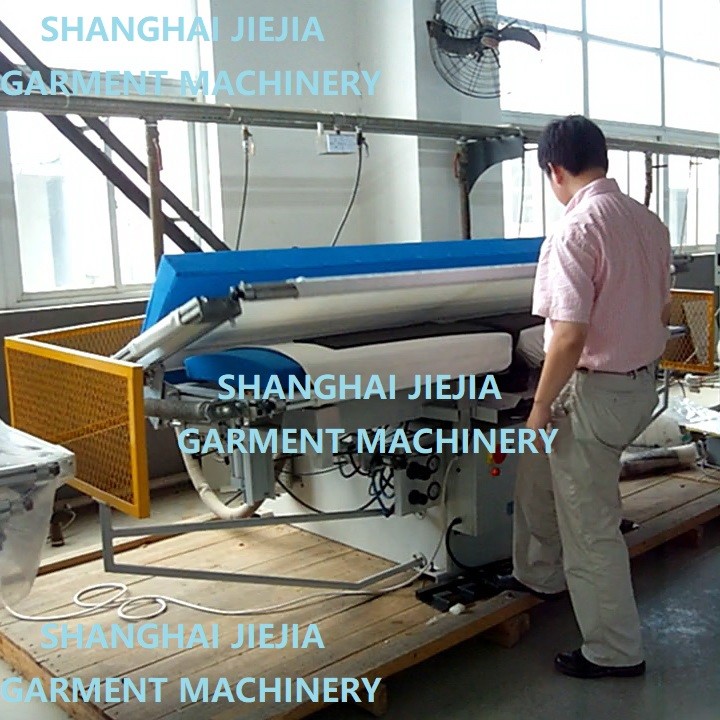

Put double legger on the bottom buck
close stretch frame
Top buck close and start program
Automatic PLC runs program
After pressing, the trousers legger looks flat and no shining.
6. Full pant press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-137 | Seat seam | 900x1200x1300 |
| 2 | CZCJ-136 | Pocket | 900x900x1650 |
| 3 | CZAJ-666 | Legger stretch | 1200x1200x1350 |
| 4 | CZAJ-119 | High pressure side seam | 1200x1200x1350 |
| 5 | CZBJ-119 | Side seam | 1200x1200x1300 |
| 6 | CZBJ-102 | Topper | 900x1200x1300 |
| 7 | CZAJ-102 | High pressure topper | 900x1200x1350 |
| 8 | CZAJ-102R | Electric-heat high pressure topper | 900x1200x1350 |
| 9 | CZBJ-101 | Legger | 1200x1200x1300 |
| 10 | CZAJ-101 | High pressure legger | 1200x1200x1350 |
| 11 | CZAJ-101R | Electric-heat high pressure legger | 1200x1200x1350 |
| 12 | CYAJ-101 | Vertical press legger | 1200x1200x1650 |
| 13 | CYAJ-101S | Vertical press double legger | 3000x1600x1650 |
| 14 | VTH-288A | Pant blowing machine / dummy | 500x1200x2000 |
7. Company profile:
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- Knitting machinery
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
8. Q&A
8.1 —How could I get more information?
please contact with E-mail and telephone
8.2 —Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
8.3 —Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
8.4 —Do you have machine video?
Yes. please contact with us.
8.5 —Are you factory?
Yes. We have manufactured for over 20 years.
8.6 —Could I customize machine or buck
Yes. We could make machine according to your requirement.
