Automatic Bonding Pressing Equipment PLC With Flat Buck Mould
industrial commercial garment pressing machine
Factory information
The company established a production base in Shanghai in 1998, with
more than 22 years of clothing ironing equipment design, research
and development, production experience
Customers are all in China, in Southeast Asia, Europe, America,
Africa and other countries
Our company has passed is090001-2015 quality system certification.
There are 5 main departments, such as technology development
department, product design department, product sales department,
accounting department and production management department.
The main products include: 1 - suit ironing machine 2 - shirt
ironing machine 3 - trousers ironing machine. 4- bonding press
machine
1. Instructions:
CZAJ-1448RR is used to bonding press underware non-sewing seam
underware bonding press.
It has high pressure and temperature setting for different
requirement
2. Automatic underware bonding press
| Model | CZAJ-14080RR |
| Control | Automatic LED PLC / touch-screen PLC 7" |
| Total pressure | 3600kg |
| Buck size | 1400x800mm or optional |
| Compress air | 0.4-0.6MPa (25L/min) 8mm |
| Electric power | 380V/3ph/50HZ, 6.1KW |
| Heating | Top buck & bottom buck |
| Max temperature | 195C |
| Dimension | 1450x1400x1350mm |
| Net weight | 570kg |
3. Machine's advantage points
3.1 / scissor close and lever amplification pressure
3.2 / LED controller or Touch-screen PLC 7" controller with more
function
3 level safety protection design for more safe
output and input signal, for easy check fault
8 / 16 programs in saving
3.3 / Advanced 180mm length shock absorber (long life use design)
or pneumatic shock absorber optional
3.4 / top buck with electric heating flat
3.5 / top buck with telfon cover
3.6 / optional: bottom buck with with electric heating
optional: vacuum (supper strong)
3.7 / build-in vacuum unit
3.8 / Vacuum: step-run, release-stop (save energy)
3.9 / emergency stop
4. Machine's application
4.1 / underware bonding press
4.2 / non-sewing seam press
4.3 / wrinkle free seam press
4.4 / sportward bonding press
5. Question & Answer
| 1.Q | How could I get more information |
| A | Please contact with our E-mail or local agent. |
| 2.Q | Do you have another type of machine? |
| A | Sure. We have 3 different levels of machine for your reference |
| 3.Q | Do you have any customer factory to see? |
| A | Sure. Please contact with us to find close one for you. |
| 4.Q | Do you have machine video? |
| A | Sure. Please contact with us. |
| 5.Q | Are you factory? |
| A | Sure. We started to manufacture on 1995 |
| 6.Q | Our garment is export to different countries. Do you have suitable
buck? |
| A | Sure. We have different types of buck series for your reference. |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Sure. We have double buck machine for small production factory. |
| 8.Q | Do you have English manual and installation instruction? |
| A | Sure s. We have all. |
| 9.Q | Could you supply OEM product? |
| A | Sure. We are supplying OEM machine for Italy, English, American
customer. |
| 10.Q | Could you supply with demo machine? |
| We could supply with demo machine with some cost. |

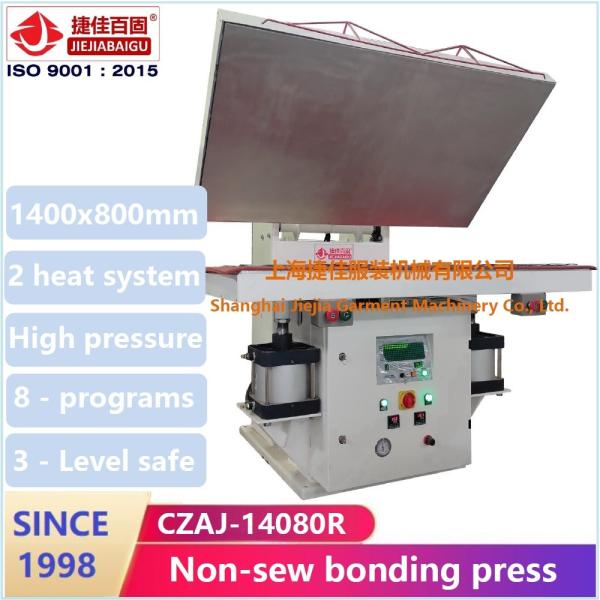

Machine's picture
7. Factory
