    220V Lady Jacket Suit Dress Pressing Machine With Steam Heating Chamber blazer suit suit press machine

    Ask Lasest Price
    Brand Name : JIEJIABAIGU
    Model Number : CYAJ
    Certification : ISO9001:2015
    Price : price is negotiable
    Supply Ability : 20 units per month
    Delivery Time : 7-15 works day
    • Product Details
    • Company Profile

    220V Lady Jacket Suit Dress Pressing Machine With Steam Heating Chamber blazer suit suit press machine

    220V Lady Jacket Suit Dress Pressing Machine With Steam Heating Chamber blazer suit suit press machine


    I. Factory information

    The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience

    Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries

    Our company has passed is090001-2015 quality system certification.

    There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department.

    Our machine has famous spare part like Mitsubishi, Omron, SCHNEIDER, FOTEK and so on.

    The main products include: 1 - man/lady suit dress ironing equipment 2 - lady / man shirt ironing equipment 3 - trousers ironing equipment.


    ModelCPJCYAJ
    Driving modeManualAutomatic controller
    Heating model of upper and lower mouldSteamSteam heat
    Driving mode of the mouldUpper mould hand operated
    Lower mould foot operated

    Upper mould and lower mould automatic
    Steam working pressure (Mpa )0.4Mpa to 0.6Mpa0.4Mpa to 0.Mpa
    Steam consumption20kg/h18-20kg/h
    Dimension1200mm*1200mm*1350mm1200mm*1200mm*1650mm

    Full range of garment ironing equipment

    Reliable equipment quality

    Delivery in time

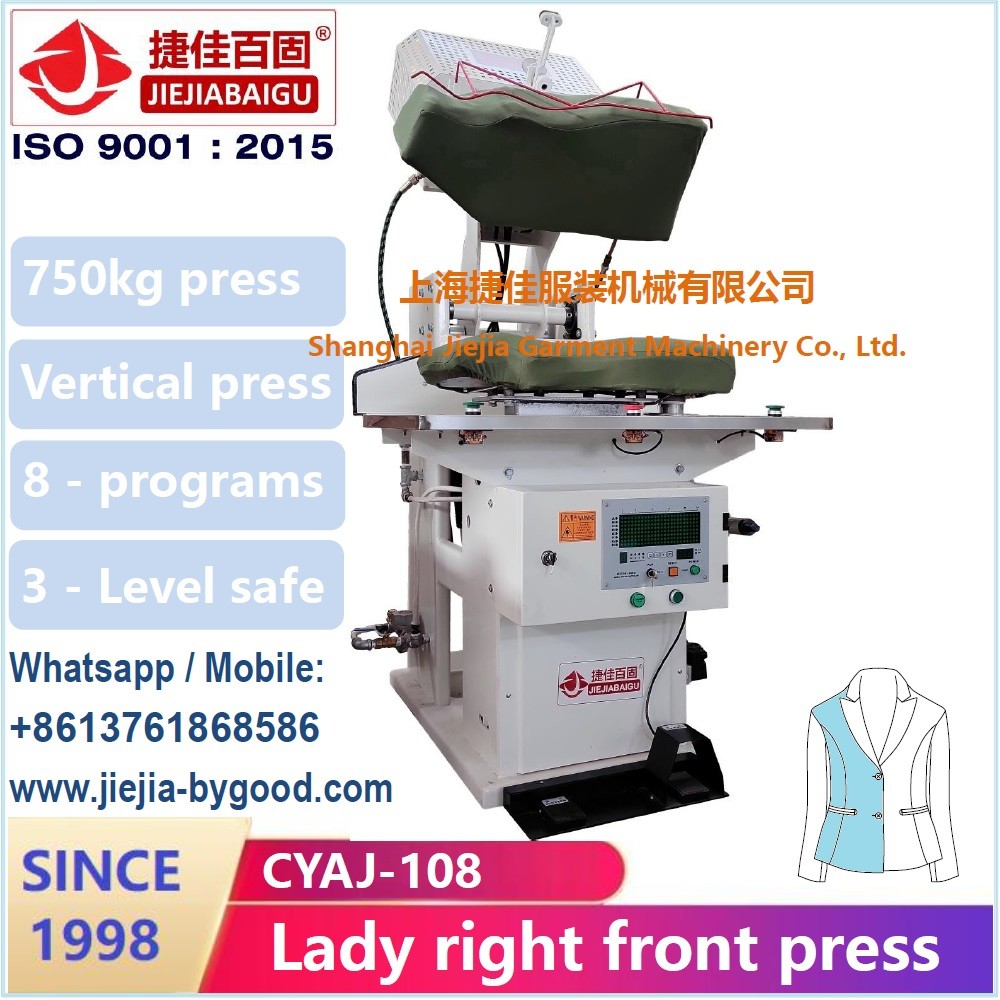

    II. Automatic suit jacket press machine (Lady right front press)

    ModelCYAJ-108 lady right front
    ControlAutomatic touch-screen PLC
    Total pressure100 up to 750kg total
    Steam0.4-0.6MPa (max 20kg/h) 1/2” pipe or build-in boiler
    Compress air0.4-0.6MPa (20L/min) 8mm pipe or build-nin compressor
    Electric power220V/1ph/50HZ
    Vacuum1.5kw extra vacuum pump 2” pi
    Drained water1/2”
    Dimension1200x1200x1650mm
    Net weight470kg

    III. Feature

    Scissors-type close & vertical press

    (All buck surface press at same time)

    Metal buck is suitable for garment

    (customizable)

    Automatic Touch-screen PLC 7 inch

    3 level safety protection device

    (input & output signal: easy to check faulty)

    180mm length shock absorber (long life)

    or pneumatic shock abosorber system

    Steam heating system

    Top buck steam spray and steam heating

    (steam chamber supply much volume)

    Bottom buck has vacuum and steam heating

    Famous pneumatic parts

    stainless steel table board

    lady front buck


    IV. Full final suit press machine


    NO.ModelDescription of machineDimension: L x W x H mm
    1CYAJ-107Left front press dady1200x1200x1650
    2CYAJ-108Right front press dady1200x1200x1650
    3CYAJ-122Left back press dady1200x1200x1650
    4CYAJ-123Right back press dady1200x1200x1650
    5CYAJ-126Double lapel press dady900x1200x1650
    6CYEJ-116.117Double shoulder press dady1000x1000x2150
    7CYGJ-547Collar master press dady1100x1100x2150
    8CZBJ-104Sleeve front press dady900x1200x1300
    9CZBJ-105Sleeve elbow press dady900x1200x1300
    10CZBJ-114Sleeve arm-hole press dady900x1200x1300
    11CABJ-114-14Sleeve blocking press dady900x1200x1300

    Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:


    1. Fabric shrink / inspect / fuse machinery
    2. Suits pressing machinery solution
    3. Pant machinery solution
    4. Shirt machinery solution
    5. Jeans machinery solution
    6. Knitting machinery solution

    Any customer could find his satisfied machinery and acceptable price for economical class or high class.


    Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.


    V. Q&A

    1. Do you have another type of machine ?
    Yes. we have 3 different levels of machine for your reference

    2. Do you have any customer factory to see?
    Yes. please contect with us to find close one for you.

    3. Do you have machine video?

    Yes. please contact with us.

    4. Are you factory?

    Yes. We have manufactured for over 20 years.


    =========================================
