CYAJ
Jacket blazer suit press machine equipment vertical lapel press
Shanghai Jiejiabaigu
| Model | CZDJ-8595 | CZDJ-14580 |
| Suitable garment | Polo shirt, T-shirt | Automatic |
| Heating model of upper and lower mould | Steam | Steam |
| Driving mode of the mould | Upper mould by cylinder
Lower mould by cylinder | Upper mould by cylinder
Lower mould by cylinder |
| Steam working pressure (Mpa ) | 0.4Mpa to 0.6Mpa | 0.4Mpa to 0.Mpa |
| Steam consumption | 30kg | 30kg |
| Dimension | 1250mm*1500mm*2150mm | 1850mm*1500mm*2150mm |
I. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time

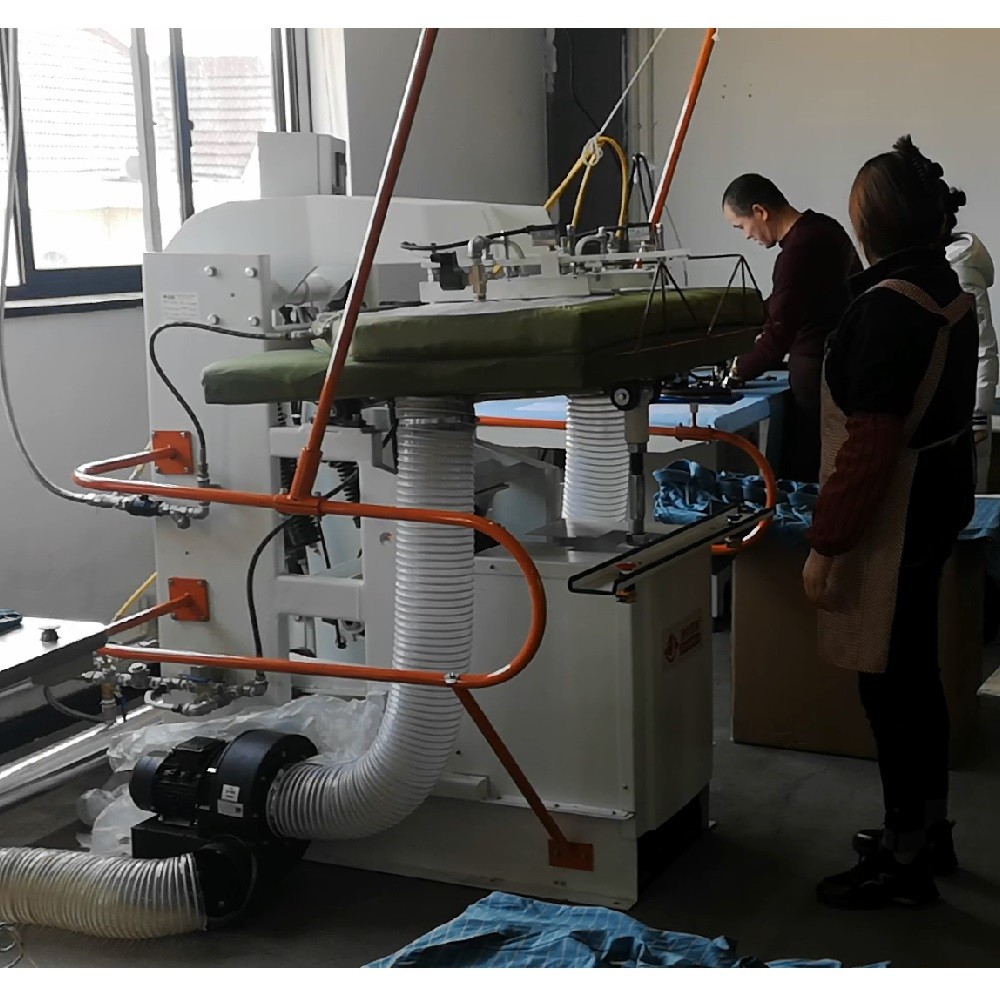

II. Automatic T-shirt press machine
| Model | CZDJ-8595 |
| Control | Automatic touch-screen PLC |
| Total pressure | 1600kg |
| Steam | 0.4-0.6MPa (30kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (30L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | dual vacumm pump (build-in) |
| Drained water | 1/2” |
| Dimension | 1250x1500x1210mm |
| Net weight | 650kg |
III. Feature
型特点
1. 触摸屏 控制 PLC, 功能强大

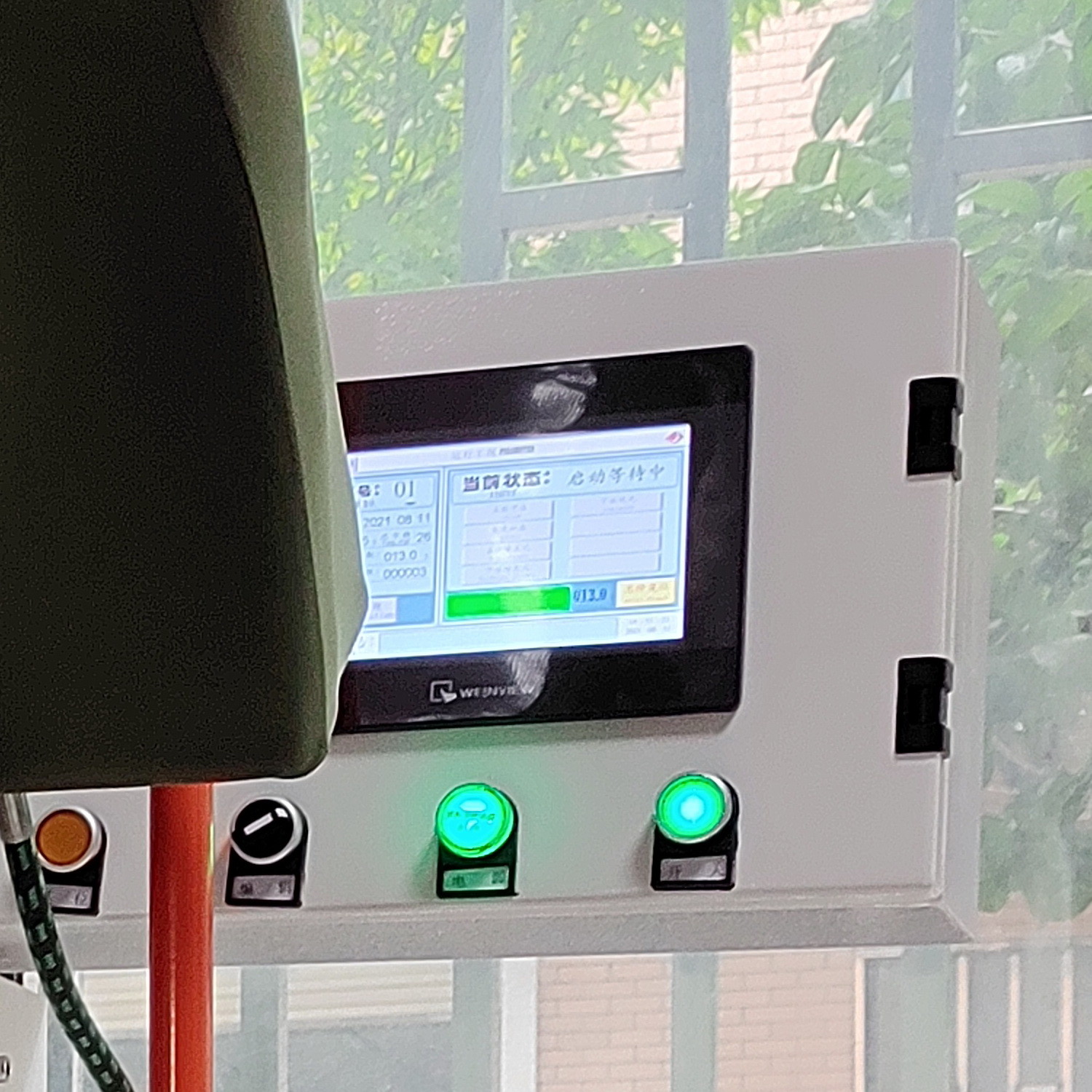

Touch screen PLC controller
2. 可 存储 16 组 参数 配方 程序
With 16 data formula programs
3. 上下模具剪刀式合模,开口大,方便操作
Top & bottom buck scissors type close. It has huge
space for worker to operate
4. 设有肩部支撑杆,方便摆放提高效率
Shoulder support stick to increase efficiency
5. 上模具采用日式铜阀喷汽,汽量大
Japan type bronze steam valve supply strong steam
6. 内置 下模具 双 抽风,抽风量超级大
bottom with dual super strong build in suction unit
7. 压 烫 之后, 提高 衣物 的 平整 度 光泽度 和 手感
It increases much planeness, luster & touch feeling
8. 三重安全防护:开机,运行检测,急停
Triple safety protect method
Start check, run monitor, emergency stop
IV. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CYAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CYAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CYAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CYAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CYAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CYGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- Knitting machinery
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam
ironing equipment with vacuum suction
