Steam Heating system vertical Garment Dress Pressing Machine For
Jacket Suit Dress ironing equipment
I. Factory
The company established a production base in Shanghai in 1998, with
more than 22 years of clothing ironing equipment design, research
and development, production experience
Customers are all in China, in Southeast Asia, Europe, America,
Africa and other countries
Our company has passed is090001-2015 quality system certification.
There are 5 main departments, such as technology development
department, product design department, product sales department,
accounting department and production management department. The
main products include: 1 - suit ironing machine 2 - shirt ironing
machine 3 - trousers ironing machine.
| Model | CPJ | CYAJ |
| Driving mode | Manual | Automatic |
| Heating model of upper and lower mould | Steam | Steam |
| Driving mode of the mould | Upper mould hand operated
Lower mould foot operated |
Upper mould and lower mould automatic |
| Steam working pressure (Mpa ) | 0.4Mpa to 0.6Mpa | 0.4Mpa to 0.Mpa |
| Steam consumption | 18kg/hour | 18kg/hour |
| Dimension | 900mm*1200mm*1350mm | 1200mm*1200mm*1650mm |
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
II. Automatic suit jacket press machine (Lady left back press)
| Model | CYAJ-122 |
| Control | Automatic touch-screen PLC |
| Total pressure | 750kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (20L/min) 8mm |
| Electric power | 220V/1ph/5060HZ |
| Vacuum | 1.5kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 900x1200x1650mm |
| Net weight | 420kg |
III. Feature
Scissors-type close & vertical press
(All buck surface press at same time)
Metal buck is suitable for garment
(customizable)
Automatic Touch-screen PLC
3 level safety protection device
(easy to check faulty)
180mm length shock absorber (long life)
Steam heating system
bottom buck with heating system & vacuum
top buck with heating chamber & optional vacuum
Top buck steam spray
(steam chamber supply much volume)
Bottom buck has vacuum
Famous pneumatic parts
IV. Full final suit jacket uniform press machine list
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CYAJ-107 | Left front body press | 1200x1200x1650 |
| 2 | CYAJ-108 | Right front body press | 1200x1200x1650 |
| 3 | CYAJ-122 | Left back body press | 1200x1200x1650 |

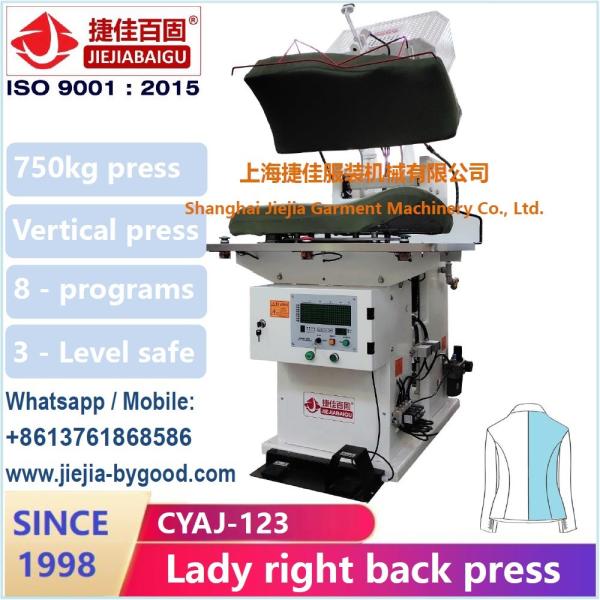

| 4 | CYAJ-123 | Right back body press | 1200x1200x1650 |
| 5 | CYAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CYGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300
|
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- Knitting machinery
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
V. Q&A
1.How could I get more information?
please contact with our E-mail or local agent.
2. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
3. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
4. Do you have machine video?
Yes. please contact with us.
5. Are you factory?
Yes. We started to manufacture on 1995
6.Our garment is export to USA. Do you have suitable buck?
Yes. We have different types of buck series for your reference.
7.Our factory production is not much, could I have some suggestion
about the machine?
Yes. We have double buck machine for small production factory.
8.Do you have English manual and installation instruction?
Yes. We have all machine with English manual and installation
instruction.
9.Could you supply OEM product?
Yes. We are supplying many OEM machine for Italy, English, American
customer.
10. Could you supply with demo machine?
We could supply with demo machine but it is could be charged for
some cost.
=========================================
Auto press machine for suit jacket uniform interlining steam
ironing equipment with vacuum suction
