220V Blazer Suit Ironing Commercial suit ironing Machine with steam
chamber vacuum pump
I. Factory information
The company established a production base in Shanghai in 1998, with
more than 22 years of clothing ironing equipment design, research
and development, production experience
Our company has passed is090001-2015 quality system certification.
There are 5 main departments, such as technology development
department, product design department, product sales department,
accounting department and production management department.
II. Automatic CZBJ series press machine feature
| Model | CZBJ-122 |
| Control | Automatic LED PLC (8 programs) |
| Optional: touch-screen PLC (16 programs) |
| Buck name | left back iron |
| Buck material | aluminium |
| Total pressure | 100-300kg (adjustable) |
| Heat method | Steam chamber |
| Optional |
| Steam spray | Top buck |
| Vacuum | Bottom buck |
| Standard: 2” vacuum pipe system |
| Optional 1: 1.5kw 220V build-in pump |
| Optional 2: 0.75kw |
| Steam | 0.4-0.6MPa (18kg/h) / (15kg/h) |
| Standard: 1/2” pipe |
| Optional: build-in steam |
| Spray by Italy made steam |
| Compress air | 0.4-0.6MPa (15L/min) |
| Standard: 8mm pipe |
| Optional: build-in air compressor |
| Electric power | 220V/1ph/50hz, 0.1kw |
| Drained water | 1/2” |
| Dimension | 1200x1200x1300mm |
| Safety | 3 levels |
| Net weight | 370kg |
| Package | Wooden case and plastic |
III. Feature detail
3.1 Scissors-type close & press
pressure 300kg
3.2 Metal buck is suitable for garment
(customizable)
3.3 Automatic LED controller (8 programs)
(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)
3.4 (3) level safety protection device
3.5 Input & output signal
3,6 180mm length shock absorber
Optional air shock absorber system
3.7 Stainless steel board
Optional painted metal board
3.8 Steam heating system (top + bottom)
3.9 Top buck steam spray
(steam chamber supply much volume)
3.10 Bottom buck has vacuum
3.11 Famous pneumatic parts
3.12 suitable for: jacket suits uniform
3.13 ironing part: left back
3.14 optional buck with electric heating
IV. Full suits final press machine
| NO. | Model | Des.of machine | Dimension: mm |
| 1 | CYAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CYAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CYAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CYAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CYAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CYGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CZBJ-114-14 | Sleeve blocking | 900x1200x1300 |
V. Production range of machinery:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- T-shirt / Sweater pressing machine
- Non-sewing seam seal press
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
VI. Q&A
| 1.Q | How could I get more information |
| A | Please contact with our E-mail or local agent. |
| 2.Q | Do you have another type of machine? |
| A | Yes. We have 3 different levels of machine for your reference |
| 3.Q | Do you have any customer factory to see? |
| A | Yes. Please contact with us to find close one for you. |
| 4.Q | Do you have machine video? |
| A | Yes. Please contact with us. |
| 5.Q | Are you factory? |
| A | Yes. We started to manufacture on 1995 |
| 6.Q | Our garment is export to different countries. Do you have suitable
buck? |
| A | Yes. We have different types of buck series for your reference. |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Yes. We have double buck machine for small production factory. |
| 8.Q | Do you have English manual and installation instruction? |
| A | Yes. We have all. |
| 9.Q | Could you supply OEM product? |
| A | Yes. We are supplying OEM machine for Italy, English, American
customer surely |
| 10.Q | Could you supply with demo machine? |
| A | We could supply with demo machine with some cost at low level |

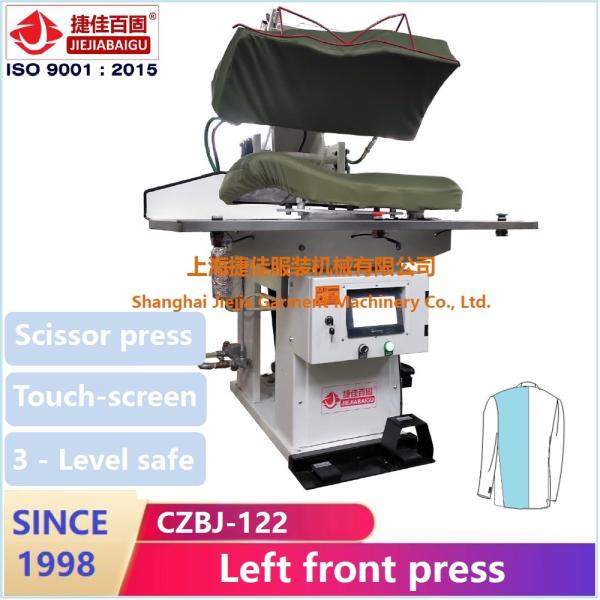

Machine's picture
