Auto-PLC laundry press machine commercial laundry press machine
Laundry press
I. Factory
The company established a production base in Shanghai in 1998, with
more than 22 years of clothing ironing equipment design, research
and development, production experience
Our company has passed is090001-2015 quality system certification.
There are 5 main departments, such as technology development
department, product design department, product sales department,
accounting department and production management department. The
main products include: 1 - suit ironing machine 2 - shirt ironing
machine 3 - trousers ironing machine.
II. Automatic CZBJ series press machine (legger)
| Model | CZBJ-102 |
| Control | Automatic LED PLC (8 programs) |
| Optional: touch-screen PLC (16 programs) |
| Buck name | double lapel |
| Buck material | metal |
| Total pressure | 2,600kg |
| Heat method | Steam chamber |
| Optional electric heating |
| Steam spray | Top buck, bottom buck, or both |
| Vacuum | Bottom buck, top buck, or both |
| Standard: 2” vacuum pipe system |
| Optional 1: 1.5kw 220V build-in vacuum pump |
| Optional 2: 0.75kw 380V build-in vacuum pump |
| Steam | 0.4-0.6MPa (18kg/h) / (15kg/h) |
| Standard: 1/2” pipe |
| Optional: build-in steam boiler 12kw 380V |
| Italy steam spray valve |
| Compress air | 0.4-0.6MPa (15L/min) |
| Standard: 8mm pipe |
| Optional: build-in air compressor 1.5kw 220V |
| Electric power | 220V/1ph/50hz, 0.1kw 220V/1ph/50hz, 1.6kw (with build-in vacuum pump) 380V/1PH/50hz, 0,85kw (with build-in vacuum pump) |
| Drained water | 1/2” |
| Dimension | 900x1200x1350mm |
| Safety | 3 levels |
| Net weight | 320kg |
| Package | Wooden case |
III. Feature
3.1 Scissors-type close & press
pressure 300kg
3.2 Metal buck is suitable for garment
(customizable)
3.3 Automatic LED controller (8 programs)
(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)
3.4 (3) level safety protection device
3.5 Input & output signal
(easy to check faulty)
3,6 180mm length shock absorber (long life)
Optional air shock absorber system
3.7 Stainless steel board
Optional painted metal board
3.8 Steam heating system (top + bottom)
3.9 Top buck steam spray
(steam chamber supply much volume)
3.10 Bottom buck has vacuum
3.11 Famous pneumatic parts
3.12 suitable for: suits / jacket / uniform / lady and man
3.13 ironing part: double lapel
3.14 optional buck with electric heating
Top buck with electric heating
bottom buck with electric heating
Or both
IV. Full pant trousers press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-136 | Pocket press | 900x1200x1300 |
| 2 | CZBJ-137 | Seat seam press | 900x1200x1300 |
| 3 | CZAJ-666 | Legger stretch press | 1200x1200x1350 |
| 4 | CZBJ-119 | Side seam press | 1200x1200x1300 |
| CZAJ-119 | --Dual cylinder | 1200x1200x1300 |
| 5 | CZBJ-102 | Waist press | 900x1200x1300 |
| CZAJ-102 | --Dual cylinder | 900x1200x1350 |
| CZAJ-102R | --Dual cylinder & electric heat | 900x1200x1350 |
| 6 | CZBJ-101 | Legger press | 1200x1200x1300 |
| 7 | CZAJ-101 | --Dual cylinder | 1200x1200x1350 |
| 8 | CZAJ-101R | --Dual cylinder & electric heat | 1200x1200x1350 |
| 9 | CYAJ-101 | --vertical press | 1200x1200x1650 |
| 10 | CYAJ-101S | Double legger press | 3000x1600x1350 |
Full suits final press machine
| NO. | Model | Des.of machine | Dimension: mm |
| 1 | CYAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CYAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CYAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CYAJ-123 | Right back press | 1200x1200x1650 |

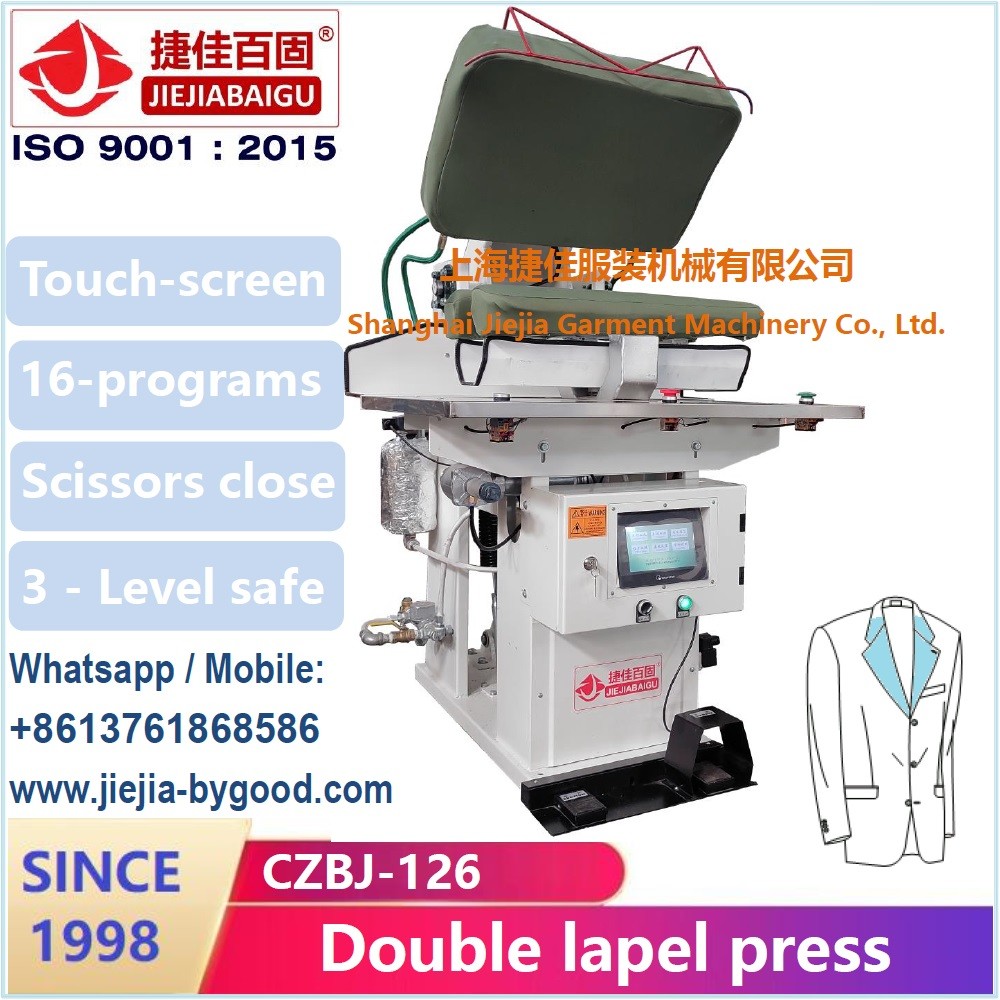

| 5 | CYAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder | 1000x1000x2150 |

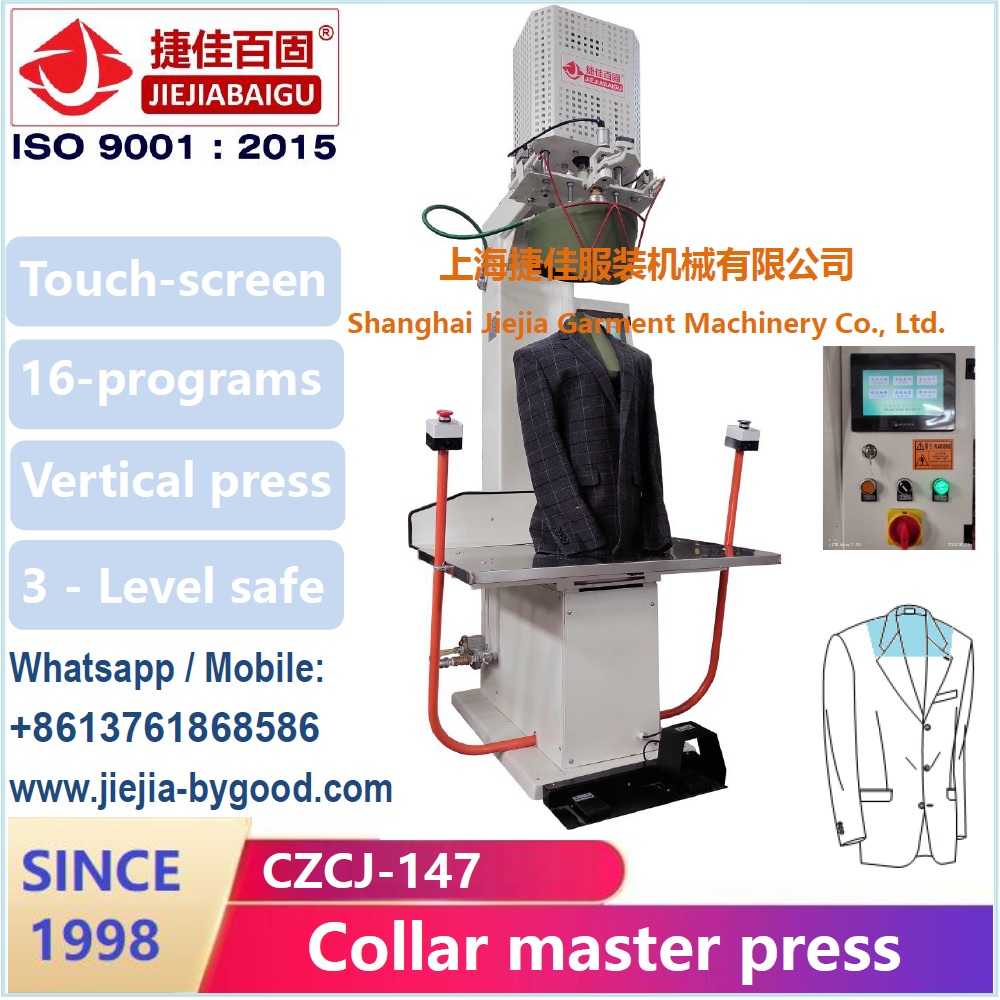

| 7 | CYGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CZBJ-114-14 | Sleeve blocking | 900x1200x1300 |
V. Production range of machinery:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- T-shirt / Sweater pressing machine
- Non-sewing seam seal press
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
VI. Q & A
| 1.Q | How could I get more information |
| A | Please contact with our E-mail or local agent. |
| 2.Q | Do you have another type of machine? |
| A | Yes. We have 3 different levels of machine for your reference |
| 3.Q | Do you have any customer factory to see? |
| A | Yes. Please contact with us to find close one for you. |
| 4.Q | Do you have machine video? |
| A | Yes. Please contact with us. |
| 5.Q | Are you factory? |
| A | Yes. We started to manufacture on 1995 |
| 6.Q | Our garment is export to different countries. Do you have suitable
buck? |
| A | Yes. We have different types of buck series for your reference. |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Yes. We have double buck machine for small production factory. |
| 8.Q | Do you have English manual and installation instruction? |
| A | Yes. We have all. |
| 9.Q | Could you supply OEM product? |
| A | Yes. We are supplying OEM machine for Italy, English, American
customer. |
| 10.Q | Could you supply with demo machine? |
| A | We could supply with demo machine with some cost. |
