Trousers pant jacket dress blouse pocket garment press Machine
steam heating system automatic steam press Shanghai Jiejiabaigu
1. Factory information
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time

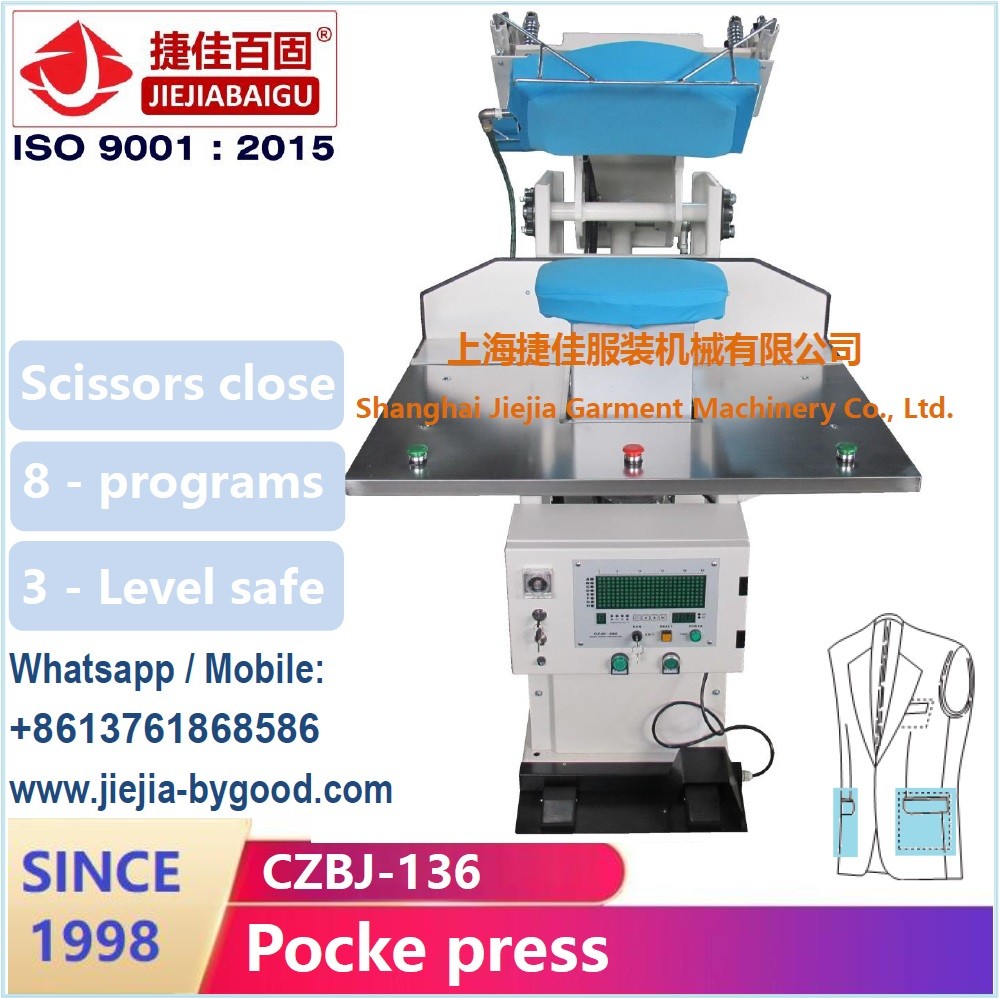

2. Automatic suit jacket press machine
| Model | CZBJ-136 pocket |
| Control | Automatic touch-screen PLC / LED PLC |
| Total pressure | 300kg |
| Buck heating | Steam heat |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 0.75kw extra vacuum pump 2” / build-in vacuum unit |
| Drained water | 1/2” |
| Dimension | 900x1200x1300mm |
| Net weight | 320kg |
3. Feature
Scissors-type close & press
pressure: 300kg
Metal buck is suitable for garment
(customizable)
Automatic Touch-screen PLC or LED PLC control system
- bucks size and shape is customerizable
- pressure is adjustable
- steam spray optional: top, bottom or both
- vacuum optional: top, bottom or both
3 level safety protection device
(easy to check faulty)
Steam heating system
Top buck steam spray
(steam chamber supply much volume)
Bottom buck has vacuum + steam spray
Famous pneumatic parts
4. Machine list of Suits final press
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed different product:
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-136 | Pocket press | 900x1200x1300 |
| 2 | CZBJ-137 | Seat seam press | 900x1200x1300 |
| 3 | CZAJ-666 | Legger stretch press | 1200x1200x1350 |
| 4 | CZBJ-119 | Side seam press | 1200x1200x1300 |
| CZAJ-119 | --Dual cylinder | 1200x1200x1300 |
| 5 | CZBJ-102 | Waist press | 900x1200x1300 |
| CZAJ-102 | --Dual cylinder | 900x1200x1350 |
| CZAJ-102R | --Dual cylinder & electric heat | 900x1200x1350 |
| 6 | CZBJ-101 | Legger press | 1200x1200x1300 |
| 7 | CZAJ-101 | --Dual cylinder | 1200x1200x1350 |
| 8 | CZAJ-101R | --Dual cylinder & electric heat | 1200x1200x1350 |
| 9 | CYAJ-101 | --vertical press | 1200x1200x1650 |
| 10 | CYAJ-101S | Double legger press | 3000x1600x1350 |
5. Factory product range
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- Knitting machinery
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
=========================================
Auto press machine for suit jacket uniform interlining steam
ironing equipment with vacuum suction
6. Question & Answer
1.Q | How could I get more information about your equipment & factory |
| A | Please contact with our E-mail or local agent. |
| 2.Q | Do you have another type of equipment? |
| A | Yes. We have 3 different levels of equipment for your reference |
| 3.Q | Do you have any customer factory to see? |
| A | Yes. Please contact with us to find close one for you. |
| 4.Q | Do you have machine video? |
| A | Yes. Please contact with us. |
| 5.Q | Are you factory? |
| A | Yes. We started to manufacture on 1995 |
| 6.Q | Our garment is export to different countries. Do you have suitable
buck? |
| A | Yes. We have different types of buck series for your reference. |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Yes. We have double buck machine for small production factory. |
| 8.Q | Do you have English manual and installation instruction? |
| A | Yes. We have all. |
| 9.Q | Could you supply OEM product? |
| A | Yes. We are supplying OEM equipment for Italy, English, American
customer. |
| 10.Q | Could you supply with demo equipment e? |
| We could supply with demo equipment with some cost. |
7. Factory and supporting processing equipment
