Nightware sleeping trousers Pressing Machine Pant Press machine
legger press steam heating system waost stretch Shanghai
Jiejiabaigu
I. Factory
The company established a production base in Shanghai in 1998, with
more than 22 years of clothing ironing equipment design, research
and development, production experience
Customers are all in China, in Southeast Asia, Europe, America,
Africa and other countries
Our company has passed is090001-2015 quality system certification.

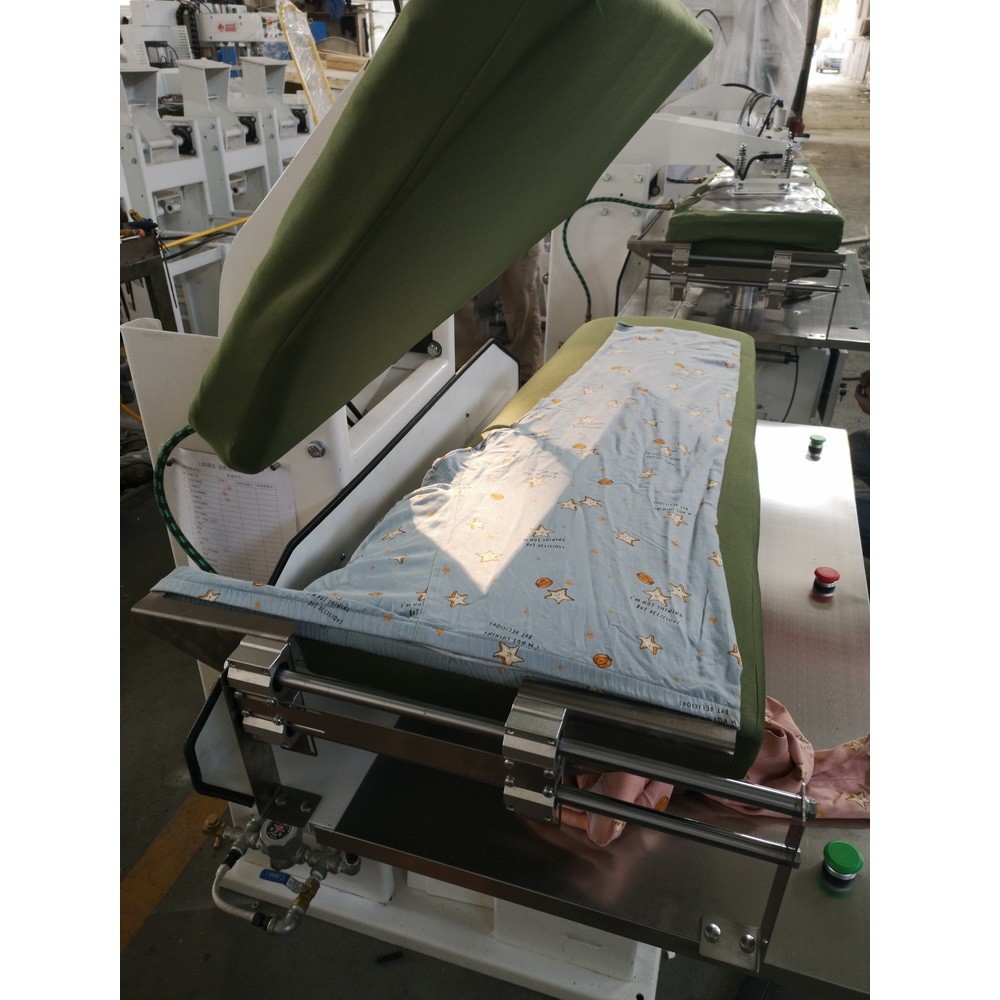

II. Automatic CZAJ series press machine (legger)
| Model | CZAJ-101N |
| Control | Automatic LED PLC (8 programs) |
| Optional: touch-screen PLC (16 programs) |
| Buck name | legger |
| Buck material | metal |
| Total pressure | 2,600kg |
| Heat method | top buck: Steam chamber |
| bottom buck: steam chamber |
| Steam spray | Top buck, bottom buck, or both |
| Vacuum | Bottom buck, top buck, or both |
| Standard: 2” vacuum pipe system |
| Optional 1: 1.5kw 220V build-in vacuum pump |
| Optional 2: 0.75kw 380V build-in vacuum pump |
| Steam | 0.4-0.6MPa (18kg/h) / (15kg/h) |
| Standard: 1/2” pipe to main steam pipe system |
| Optional: build-in steam boiler 12kw 380V |
| Spray by Japan design big volume steam |
| Compress air | 0.4-0.6MPa (15L/min) |
| Standard: 8mm pipe |
| Optional: build-in air compressor 1.5kw 220V |
| Electric power | 220V/1ph/50hz, 0.1kw 220V/1ph/50hz, 1.6kw (with build-in vacuum pump) 380V/1PH/50hz, 0,85kw (with build-in vacuum pump) |
| Drained water | 1/2” |
| Dimension | 1200x1200x1350mm |
| Safety | 3 levels |
| Net weight | 490kg |
| Package | Wooden case |
III. Feature
3.1 Scissors-type close & level press
High pressure 2,600kg / 1,600kg
3.2 Metal buck is suitable for garment
(customizable)
3.3 Automatic LED controller (8 programs)
(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)
3.4 (3) level safety protection device
3.5 Input & output signal
(easy to check faulty)
3,6 180mm length shock absorber (long life)
Optional air shock absorber system
3.7 Stainless steel board
Optional painted metal board
3.8 Steam heating system (top + bottom)
3.9 Top buck steam spray
(steam chamber supply much volume)
3.10 Bottom buck has vacuum
3.11 Famous pneumatic parts
IV. Full pant trousers press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-136 | Pocket press | 900x1200x1300 |
| 2 | CZBJ-137 | Seat seam press | 900x1200x1300 |
| 3 | CZAJ-666 | Legger stretch press | 1200x1200x1350 |
| 4 | CZBJ-119 | Side seam press | 1200x1200x1300 |
| CZAJ-119 | --Dual cylinder | 1200x1200x1300 |
| 5 | CZBJ-102 | Waist press | 900x1200x1300 |
| CZAJ-102 | --Dual cylinder | 900x1200x1350 |
| CZAJ-102R | --Dual cylinder & electric heat | 900x1200x1350 |
| 6 | CZBJ-101 | Legger press | 1200x1200x1300 |
| 7 | CZAJ-101 | --Dual cylinder | 1200x1200x1350 |
| 8 | CZAJ-101R | --Dual cylinder & electric heat | 1200x1200x1350 |
| 9 | CYAJ-101 | --vertical press | 1200x1200x1650 |
| 10 | CYAJ-101S | Double legger press | 3000x1600x1350 |
V. Production range of machinery:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- T-shirt / Sweater pressing machine
- Non-sewing seam seal press
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
VI. Q&A
1.How could I get more information?
please contact with our E-mail or local agent.
2. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
3. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
4. Do you have machine video?
Yes. please contact with us.
5. Are you factory?
Yes. We started to manufacture on 1995
6.Our garment is export to USA. Do you have suitable buck?
Yes. We have different types of buck series for your reference.
7.Our factory production is not much, could I have some suggestion
about the machine?
Yes. We have double buck machine for small production factory.
8.Do you have English manual and installation instruction?
Yes. We have all machine with English manual and installation
instruction.
9.Could you supply OEM product?
Yes. We are supplying many OEM machine for Italy, English, American
customer.
10. Could you supply with demo machine?
We could supply with demo machine but it is could be charged for
some cost.
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
