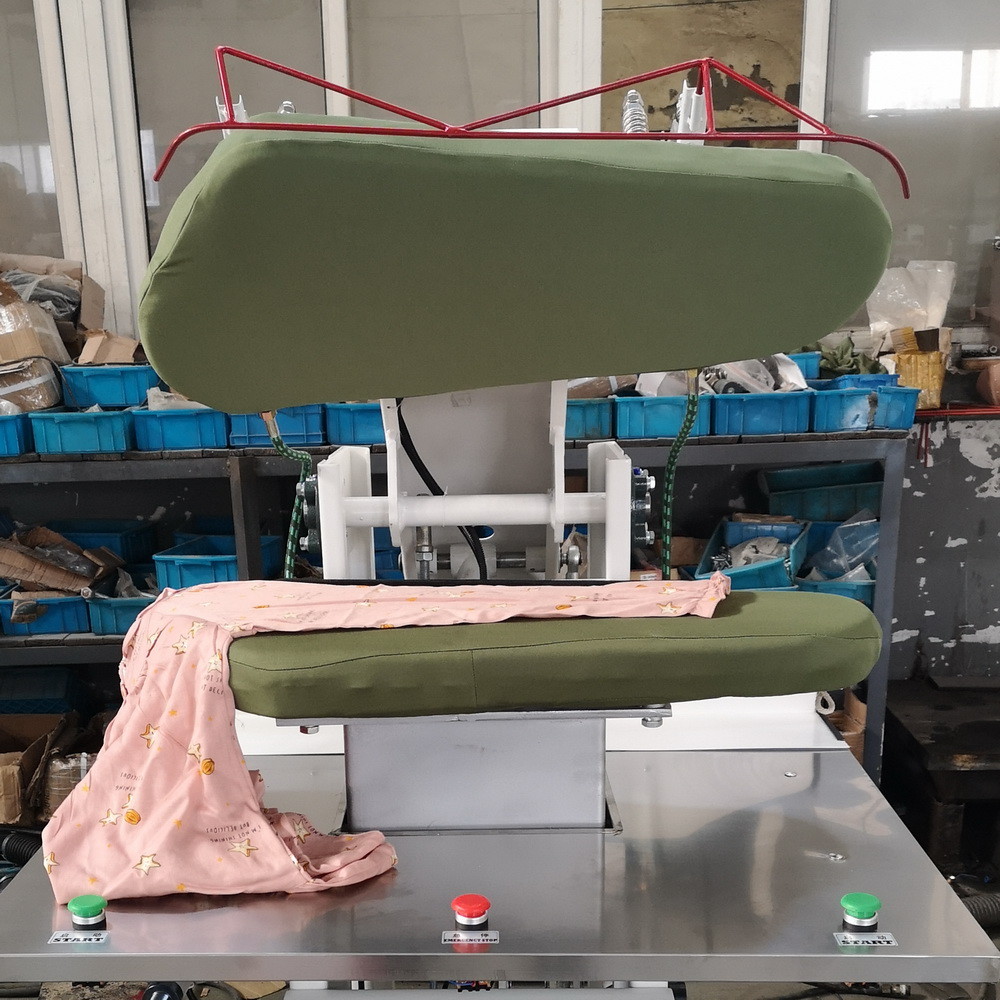

LED plc Industrial Nightclothes steam Pressing Machine LED PLC
Control steam heating system
This steam press is perfect machine forr hotels, classic laundry
shop, health care center to do ironing job of clothes
This steam press is used for shaped-fixed and ironing processing
for suits, the trousers' legs and rousers which made of woool,
synthetic fibric, it is easy in maintance and adaptable to medium
and small-size garment manufactures.
Both the top mold and bottom mold is vacuum and heated by steam.
The machine can be operated manually or automatic that the air
operated automatic steam press.
I. Factory introduce
The JIEJIA company established a production base in Shanghai in
1998, with more than 24 years of clothing ironing equipment design,
research and development, production experience
Sales network are all in China, in Southeast Asia, Europe, America,
Africa and other countries
Our company has passed is090001-2015 quality system certification.
There are 5 main departments, such as technology development
department, product design department, product sales department,
accounting department and production management department. The
main products include: 1 - suit ironing machine 2 - shirt ironing
machine 3 - trousers 4-T-shirt / sweater ironing machine.
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
II. Automatic Pant press machine
| Model | CZBJ-104-51 nightclothes sleeve press |
| Control | Automatic LED PLC / touch-screen PLC |
| Total pressure | 300kg |
| Steam | 0.4-0.6MPa (15kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (20L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 0.75kw extra vacuum pump 2” / build-in vacuum unit |
| Drained water | 1/2” |
| Dimension | 900x1200x1650mm |
| Net weight | 320kg |
II. Feature
Scissors-type close & press
Metal buck is suitable for garment
(customizable)77
Supper high pressure upto 2,600kg
Automatic LED PLC / Touch-screen PLC77
3 level safety protection device77
180mm length shock absorber (long life)77
Steam heating system77
Top buck steam spray77
High volume Japan type steam valve77
(steam chamber supply much volume)77
Bottom buck has vacuum77
Famous pneumatic parts77
IV. Full pant press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-137 | Seat seam | 900x1200x1300 |
| 2 | CZCJ-136 | Pocket | 900x900x1650 |
| 3 | CZAJ-666 | Legger stretch | 1200x1200x1350 |
| 4 | CZAJ-119 | High pressure side seam | 1200x1200x1350 |
| 5 | CZBJ-119 | Side seam | 1200x1200x1300 |
| 6 | CZBJ-102 | Topper | 900x1200x1300 |
| 7 | CZAJ-102 | High pressure topper | 900x1200x1350 |
| 8 | CZAJ-102R | Electric-heat high pressure topper | 900x1200x1350 |
| 9 | CZBJ-101 | Legger | 1200x1200x1300 |
| 10 | CZAJ-101 | High pressure legger | 1200x1200x1350 |
| 11 | CZAJ-101R | Electric-heat high pressure legger | 1200x1200x1350 |
| 12 | CYAJ-101 | Vertical press legger | 1200x1200x1650 |
| 13 | CYAJ-101S | Vertical press double legger | 3000x1600x1650 |
| 14 | VTH-288A | Pant blowing machine / dummy | 500x1200x2000 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- Knitting machinery
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
V. Q&A
1.Q | How could I get more information about your equipment & factory |
| A | Please contact with our E-mail or local agent.- |
| 2.Q | Do you have another type of equipment? |
| A | Yes. We have 3 different levels of equipment for your reference- |
| 3.Q | Do you have any customer factory to see? |
| A | Yes. Please contact with us to find close one for you.- |
| 4.Q | Do you have machine video? |
| A | Yes. Please contact with us.- |
| 5.Q | Are you factory? |
| A | Yes. We started to manufacture on 1995- |
| 6.Q | Our garment is export to different countries. Do you have suitable
buck? |
| A | Yes. We have different types of buck series for your reference.- |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Yes. We have double buck machine for small production factory.- |
| 8.Q | Do you have English manual and installation instruction? |
| A | Yes. We have all.- |
| 9.Q | Could you supply OEM product? |
| A | Yes. We are supplying OEM equipment for Italy, English, American
customer.- |
| 10.Q | Could you supply with demo equipment e? |
| We could supply with demo equipment with some cost.- |
=========================================
I
Auto press machine for suit jacket uniform interlining steam
ironing equipment with vacuum suction
