casual trousers pants steeam pressing machine ironing equipment
touch screen plc

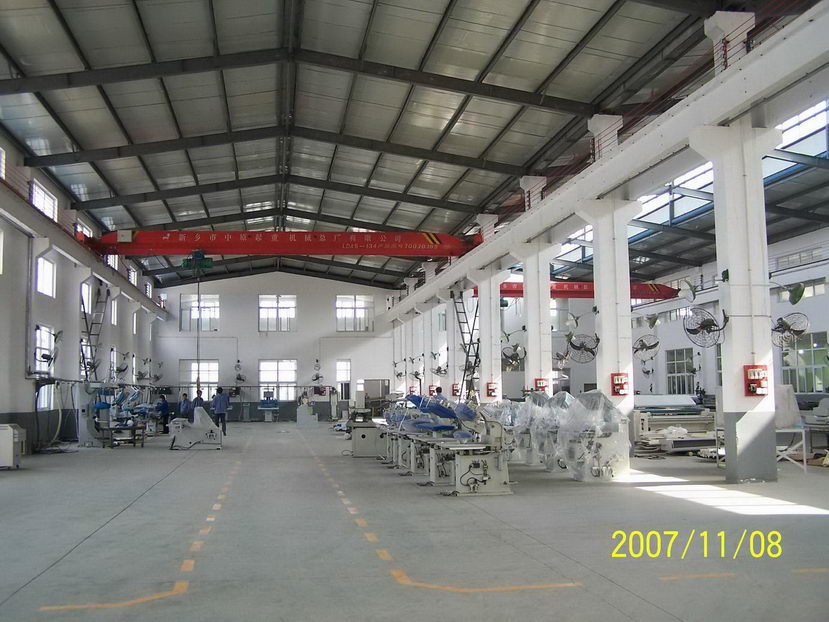

I. Factory
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
The company established a production base in Shanghai in 1998, with
more than 22 years of clothing ironing equipment design, research
and development, production experience
Customers are all in China, in Southeast Asia, Europe, America,
Africa and other countries
There are 5 main departments, such as technology development
department, product design department, product sales department,
accounting department and production management department.
Our machine has famous spare part like Mitsubishhi, Omron,
SCHNEIDER, FOTEK and so on.
The main products include: 1 - suits ironing machine 2 - shirt
ironing machine 3 - trouserrs ironing machine.
II. Automatic CZAJ Pant press machine
| Model | CZAJ-102 / CZAJ-102R |
| Control | LED type PLC / 7" toucch-screen PLC |
| Total pressure | 1,600kg max |
| Steam | 0.4-0.6MPa (16-18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (25L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 0.75kw extra vacuum pump 2” / build-in vacuum unit |
| Drained water | 1/2” |
| Dimension | 900x1200x1350mm |
| Net weight | 420kg |
III. Feature
Scissors-type close & high pressure
(up to 1,600kg m)
Metal buck is suitable for casual pant / trousers
(customizable & optional)
waist buck has 6 types of differnt choices design
Supper high pressure upto 1,600kg
Automatic LED PLC or 7" Touch-screen PLC
3 level safety protection device
180mm length shock absorber (long life design)
Steam heating system or electric plus
Top buck steam spray
High volume Japon type steam valve
(steam chamber supply much volume)
Bottom buck has vacuum
Famous pneumatic parts
optional device: vacuum pump / steam genreator / compressor
optional device: bottom buck with steam spray
** 6 TYPES OF BUCK FOR DIFFERENT POPOSE.
IV. Full pant press machine
| NO. | Model | Description of machineg | Dimension: L x W x H mm |
| 1 | CZBJ-137 | Seat seamg | 900x1200x1300 |
| 2 | CZCJ-136 | Pocketg | 900x900x1650 |
| 3 | CZAJ-666 | Legger stretchg | 1200x1200x1350 |
| 4 | CZAJ-119 | High pressure side seamg | 1200x1200x1350 |
| 5 | CZBJ-119 | Side seamg | 1200x1200x1300 |
| 6 | CZBJ-102 | Topperg | 900x1200x1300 |
| 7 | CZAJ-102 | High pressure topperg | 900x1200x1350 |
| 8 | CZAJ-102R | Electric-heat high pressure topperg | 900x1200x1350 |
| 9 | CZBJ-101 | Leggerg | 1200x1200x1300 |
| 10 | CZAJ-101 | High pressure leggerg | 1200x1200x1350 |
| 11 | CZAJ-101R | Electric-heat high pressure leggerg | 1200x1200x1350 |
| 12 | CYAJ-101 | Vertical press leggerg | 1200x1200x1650 |
| 13 | CYAJ-101S | Vertical press double leggerg | 3000x1600x1650 |
| | | |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developsd 5 series of main product:
- Fabrics shrink / inspect / fuse machinery
- Suitss pressing machinery
- Pants machinery
- Shirts machinery
- Jeans machinery
- Knittings machinery
- t-shirts / sweaters
Any customer could find his satisfiied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
