Touch Screen PLC Control pocket flap double head vertical press
machine
Shanghai Jiejia Garment Machinery Co., Ltd.
Specifications
Blazer / suit pocket flap Pressing Machine, Commercial laundry
equipment
1, Friendly operation, easy use & maitain
2, Factory, good price
I. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
II. Automatic suit jacket press machine (double lapel)
| Model | CZKJ-136S |
| Control | Automatic touch-screen PLC |
| Total pressure | 80kg |
| Steam | 0.4-0.6MPa (15kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (12L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 0.75kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 700x1100x1400mm |
| Net weight | 200kg |
III. Feature
CYKJ-136S Pocket flap pressing machine
CYKJ Feature:
- Vertical close quickly and press with equal pressure
- Touchscreen+PLC intelligent programmable computer
- 16 program data to set time of press, steam-spray and vacuum
- Input and output signals are easy for checking faulty
- 3-level safety protection: switch-on, run-supervise, E-stop
- Install isolation transformers to ensure electrical safety
- Volume of steam spray is adjustable for different ironing
requirement
- Pressure of top mold is adjustable for different fabric
- Dual by-pass design: fast pre-heat and energy-save of
heat-protection
- Double expending device for high ironing efficiency
- Stretch pressure is adjustable for different fabric
Optional device:
- build-in energy-save vacuum unit
- Internet of Things Big Data Blockchain Interface
Online visualization data
| Buck No. | 136S Pocket flap |
| Control system | Touch-screen + PLC, |
| Compressed air | 0.4-0.6 MPa, consumption: ≤15L/min |
| Power | 220V/1p/50hz 0.1kw |
| Steam | 0.3-0.5MPa, consumption: 12kg/h |
| Suction | ≥00.75 kw/ pipe suction |
| Dimension | 700×1100×1400mm |
| Weight | 200kg |
IV. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CXAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CXAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CXAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CXAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CXAJ-126 | Double lapel | 900x1200x1650 |

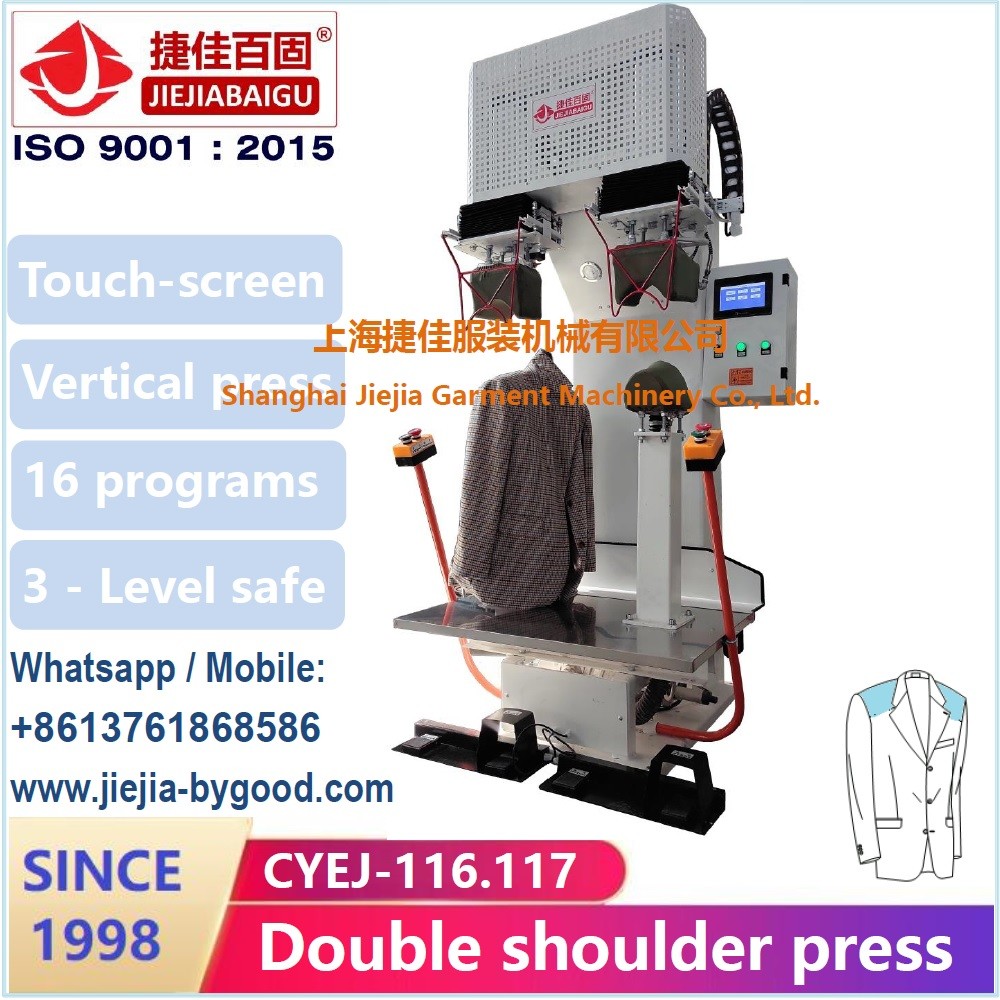

| 6 | CXEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CXGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998.
Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- Knitting machinery
Any customer could find his satisfied machinery and acceptable
price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment
ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat
and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam
ironing equipment with vacuum suction
