    Automatic Blazer Suit Jacket Press Machine Sleeve Front Stretch

    Ask Lasest Price
    Brand Name : JIEJIABAIGU
    Model Number : CYAJ
    Certification : ISO9001:2015
    Price : price is negotiable
    Supply Ability : 20 units per month
    Delivery Time : 7-15 works day
    • Product Details
    • Company Profile

    Automatic Blazer Suit Jacket Press Machine Sleeve Front Stretch

    Automatic blazer suit jacket press machine sleeve front stretch


    I. Factory

    Factory since: 1998

    Full range of garment ironing equipment

    Reliable equipment quality

    Delivery in time


    II. Automatic suit jacket press machine (Sleeve stretch)

    ModelCYAJ-104-41
    ControlAutomatic touch-screen PLC
    Total pressure750kg
    Steam0.4-0.6MPa (18kg/h) 1/2”
    Compress air0.4-0.6MPa (20L/min) 8mm
    Electric power220V/1ph/50HZ
    Vacuum1.15kw extra vacuum pump 2”
    Drained water1/2”
    Dimension900x1200x1650mm
    Net weight420kg

    Service System

    Pre-Sale Service
    Before the order is confirmed, we will provide free laundry layout and all the consultation about the product.

    Sale Service
    1). In-depth Design
    When the order is confirmed, we will communicate with the professional staff from the buyer's part and discuss the in-depth drawing design. Besides, we will provide the whole laundry factory layout design for free. The design scheme will be including equipment installation drawing about foundation, water inlet, drainage, air input and output, compressed air and electricity.

    2). Installation
    All the machines are well tested before we delivery the machines to the operator
    When the equipment arrive to the buyer, we will send our technical staffs to provide field installation guidance and any other necessary help to ensure proper and standard installation.

    3). Testing
    After installation, our staff will help our customer to test the machine and check all the technical index, function, specification of the machine. Also we will comprehensively eliminate all the possible human-caused damage or troubles during installation to make sure the machine will operate in its best condition.

    4). Operation Training
    Before the machine is put into use, we will provide operation training to ensure the operators from the buyer's part can work independently. The training includes proper operation, safe startup, smooth operation, proper washing, linen check and categorization and machine maintenance. Also we will help operators to learn the right way to save water, energy and emergent stop operation.


    III. Feature

    Scissors-type close & vertical press

    (All buck surface press at same time)

    Metal buck is suitable for garment

    (customizable)

    Automatic Touch-screen PLC

    3 level safety protection device

    (easy to check faulty)

    180mm length shock absorber (long life)

    Steam heating system

    Top buck steam spray

    (steam chamber supply much volume)

    Bottom buck has vacuum

    Famous pneumatic parts


    IV. Full inline suit press machine


    NO.ModelDescription of machineDimension: L x W x H mm
    1CZBJ-120-21sleeve front seam900x1200x1300
    2CZBJ-120-31sleeve elbow seam900x1200x1300
    3CYAJ-112-31Left front dart press1200x1200x1650
    4CYAJ-113-31Right front dart press1200x1200x1650
    5CYAJ-112Left interline1200x1200x1650

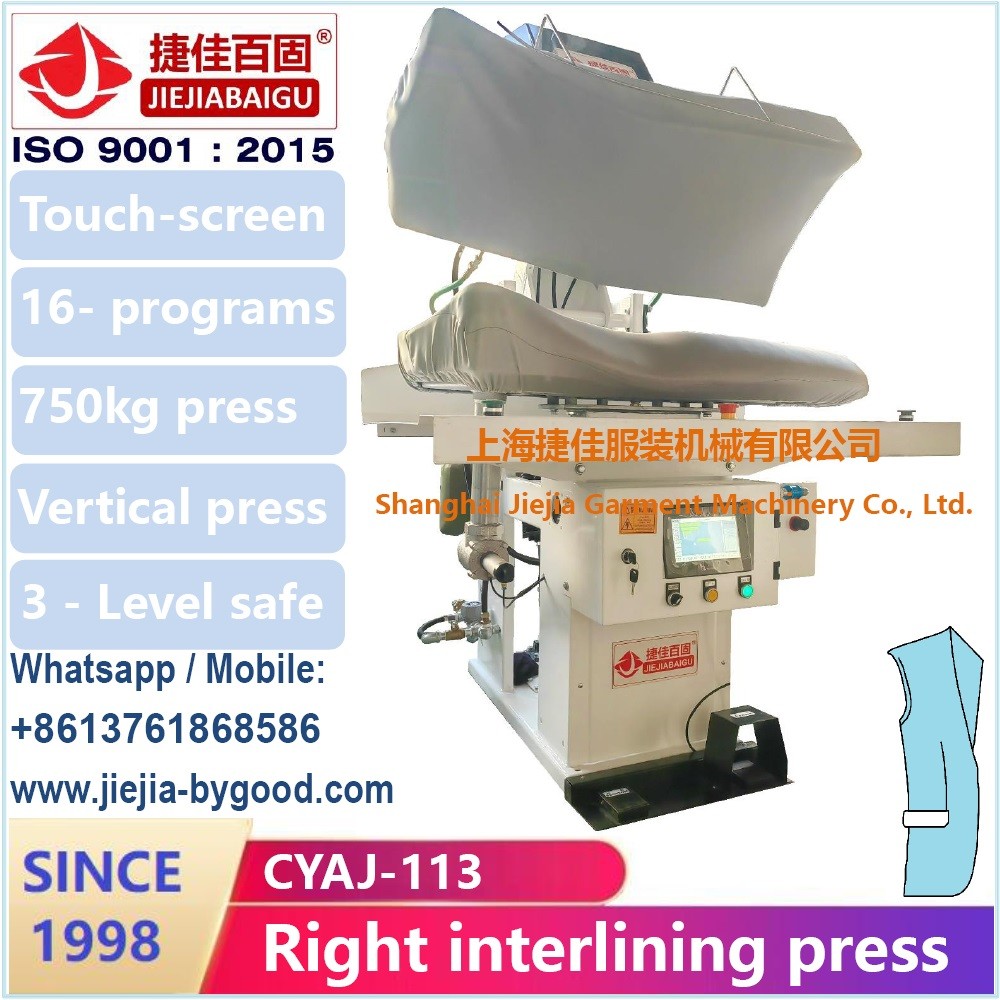

    6CYAJ-113Right interliine1200x1200x1650
    7CYAJ-104-41Sleeve stetch900x1200x1650
    8CYAJ-120Back & side seams1200x1200x1650
    9CZBJ-103shoulder seam900x1200x1300
    10CYAJ-368Front and edge1200x1200x1650
    11CYAJ-369Front and edge1200x1200x1650

    Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:


    1. Fabric shrink / inspect / fuse machinery
    2. Suits pressing machinery
    3. Pant machinery
    4. Shirt machinery
    5. Jeans machinery
    6. Knitting machinery

    Any customer could find his satisfied machinery and acceptable price for economical class or high class.


    Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.


    V. Q&A

    1. Do you have another type of machine ?
    Yes. we have 3 different levels of machine for your reference

    2. Do you have any customer factory to see?
    Yes. please contect with us to find close one for you.

    3. Do you have machine video?

    Yes. please contact with us.

    4. Are you factory?

    Yes. We have manufactured for over 20 years.


    =========================================
